Cabo De 12 Fo Sm G652D ASU80 12 Fibras ADSS Cable With Anatel Certificates

Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: ASU80 12 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 200000M/Week

我要询价

详情介绍

iber Type:	G652D Or As Your Request	Fiber Brand:	YOFC / Fiberhome / Corning / KNOFC
Fiber Count:	2-24 Core	Strength Member:	2*FRP
Protective Layer:	Water Blocking Tape	Outer Sheath Material:	HDPE
Application:	Aerial / Duct	Life Expectancy:	More Than 30 Years
Operating Temperature:	-40°C To+70°C	Certification:	ISO9001/CE

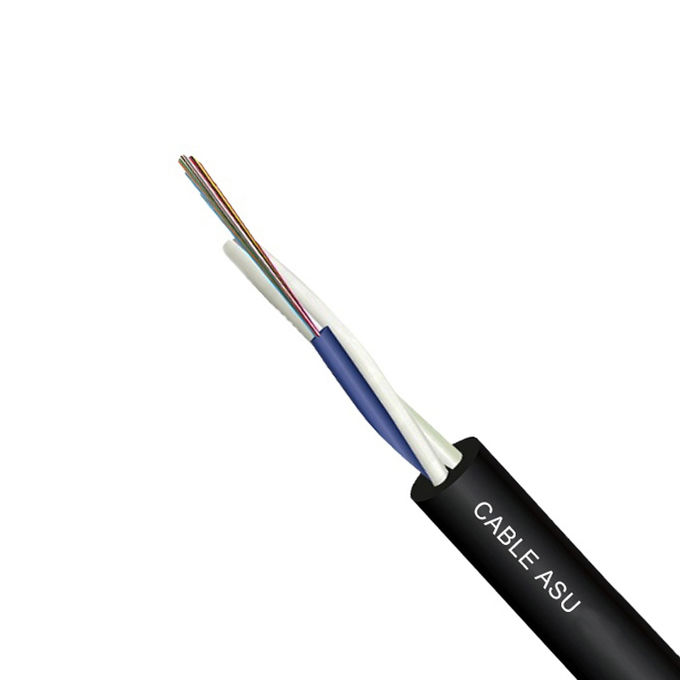

Cabo De 12 Fo Sm G652D ASU80 12 Fibras ADSS Cable With Anatel Certificates

Description:

The optical fiber is put in a loose tube.The fiber can be 1-24 cores in the tube. Tube filling compound will be used for as water blocking elements. FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket. This cable has the fetures of small size and light weight. It help to save the shipping cost. Applicable for short span aerial and duct installation.

Characteristics:

Small Size and Ligth Weight.
Two FRP as strength member to provide good tensile performance.
Gel Filled or gel free , good waterproof performance.
Low price ,high fiber capacity.
Applicable for short span aerial and duct installation.

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.

Optical Fiber Characteristic:

		G.652.D	G.655	50/125μm	62.5/125μm
Attenuation	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

Cable Mechanical characteristic:

Cable type	Diameter (mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Crush Resistance Long/Short Term(N/100mm)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
ASU80-2~24	8	70	600/1500	300/1000	20D/10D	-20~+70
