Place of Origin: China Brand Name: KNOFC or OEM Certification: CE/ISO9001 Model Number: ESC250D Fast Connector Minimum Order Quantity: 1pcs Price: Negotiable Packaging Details: Plastic boxes Supply Ability: 50000pcs/week
| Fiber Type: | Singlemode | Fiber Cable Type: | 3x2.0mm Ftth Drop Cable |
| Insertion Loss: | ≤ 0.25dB | Return Loss: | ≥50dB |
| Application: | FTTH,LAN,PON&Optical CATV | Operating Temperature: | -30°C To+60°C |
| High Light: | ESC250D Fiber Optic Quick Connector, ESC250D SC UPC Fast Connector, FTTH Fiber Optic Quick Connector | ||

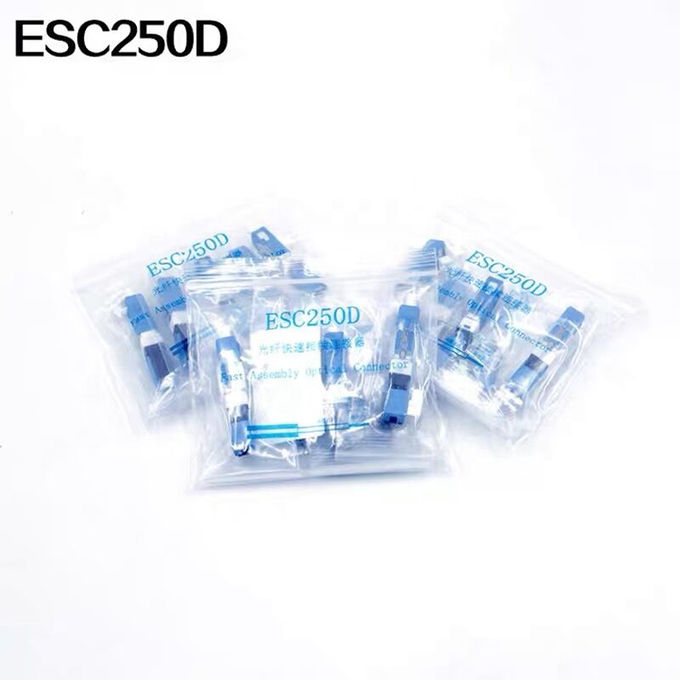

ESC250D SC UPC Fast Connector Fiber Quick Connector
Description:
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Features:
1.Reliable and superior optical performance.
2.Using corning fiber.
3.Imported Brand matching gel(FIS).
4.Print manufacturer name on fast connector body.
5.Easy for assembling with mechanical splice and no polishing.
6.Lock and open the structure to make sure optical fiber, flexible, easy to use.
7.Operating Wavelength: 1310nm, 1490nm, 1510nm.
8.High temperature cycle test 24hours( -40-85℃) is stable working in poor condition.
9.Analysis 3D ferrule (3D geometry test)
Parameter:
| Item | Parameter |
| Cable Scope | 3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable |
| Size | 51*9*7.55mm |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return Loss | ≤ -50dB for UPC, ≤ 55dB for APC |
| Success Rate | >98% |
| Reusable Times | >5 times |
| Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >30 N |
| Temperature | -40 ~ +85 C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test |
IL ≤ 0.3dB |
