FC Network Patch Panel 8 Ports Fiber Optic Terminal Box
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Patch Panel 8 Ports
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton
Supply Ability: 50000pcs/month
Material: Cold Roll Steel Sheet Color: Black
Connector: SC LC FC ST Application: FTTX Network
Port: 12/24/48/96/144 External Size: 1U,2U,3U,4U
High Light: 8 Ports Fiber Optic Terminal Box, FC Network Fiber Optic Patch Panel, FC Network Patch Panel

Network FC 8 Ports Optic Fiber Terminal Box Fiber Optical Patch Panel



The box is made of high quality cold rolled steel, and the surface is treated with Powder painting, painted well, is attractive and durable.It is used for the termination of optic cable, 19” standard, rack mounted, for FC, SC, LC adaptors, convenience for use.This plc splitter box meet the National Standard of YD/T925-1997.1-2 cable-in ports,1~32 cores fiber out ports. Protective caps available, increase the flexibility of using.



1) Standard size, light weight and reasonable structure
2) Fiber pigtail can provide reliable, perfect protection
3) Can be used in 19''standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
8) Easy for management and operation
9) FC/SC/ST/Others Adapters for Option, available.


Technique Performance:

1. External size 480x250x1U, 2U,
2. Fiber capacity from 12 cores to 48 cores
3. Insertion loss: <0.3dB
4. Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
5. Winding radius ≥40mm
6. Working temperature -25°C~+45°C
7. Atmosphere pressure 70~106Kpa
8. Insulated Resistance 2×10MΩ/500V(DC)W
9. Voltage- resistance:Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.



Interface type6 Port SC /FC/ST
MaterialCold-rolled plate
Ambient temperature-25 ° C ~ +45 ° C
Relative humidity≤ 85% (at 30 ° C)
Atmospheric pressure70 ~ 106KPa
Withstand voltageunder 15KV DC, no breakdown at 1min, no arcing
Application rangeUsed for fiber cable end, fixed, fiber and pigtail fusion and fiber containment and protection



1 Telecommunications subscriber loop
2 Fiber to the home (FTTH)
3 Optical access network (OAN)
4 Data processing centers/Cable television (CATV)
5 Local area network (LAN)

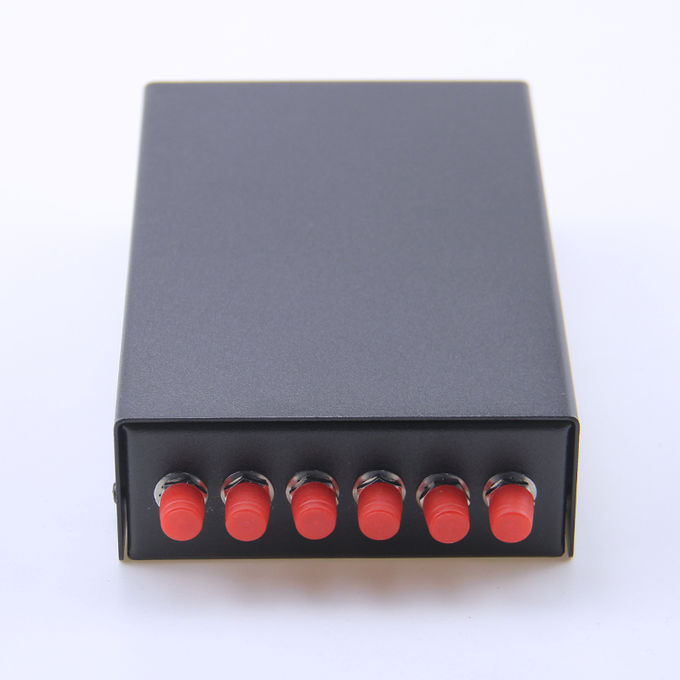

FC Network Patch Panel 8 Ports Fiber Optic Terminal Box 0

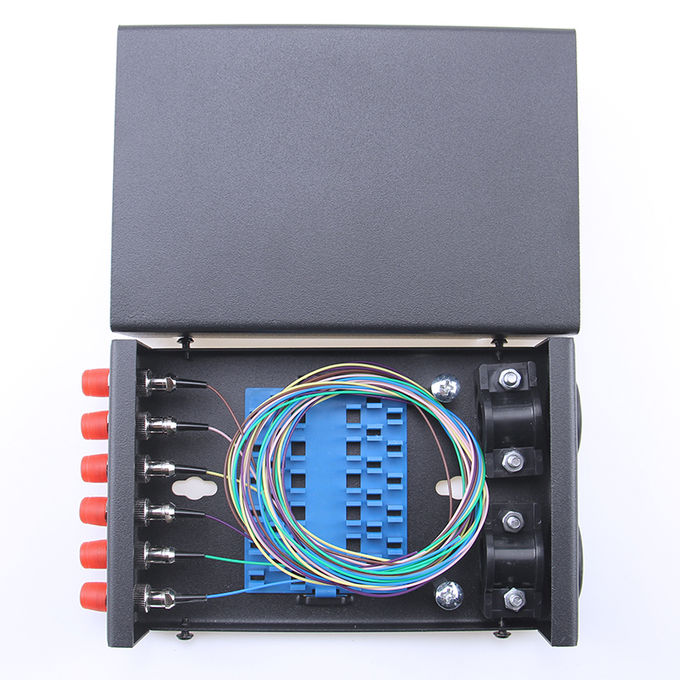

FC Network Patch Panel 8 Ports Fiber Optic Terminal Box 1
