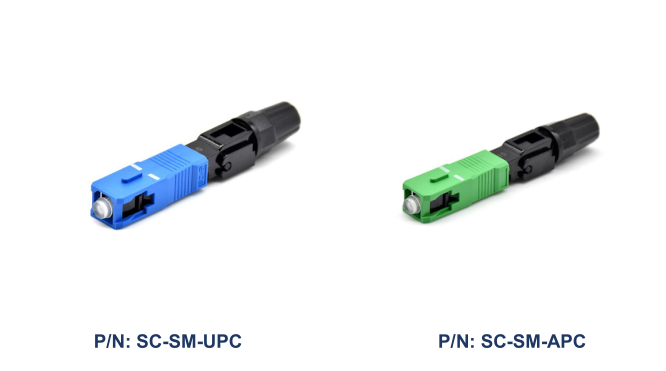

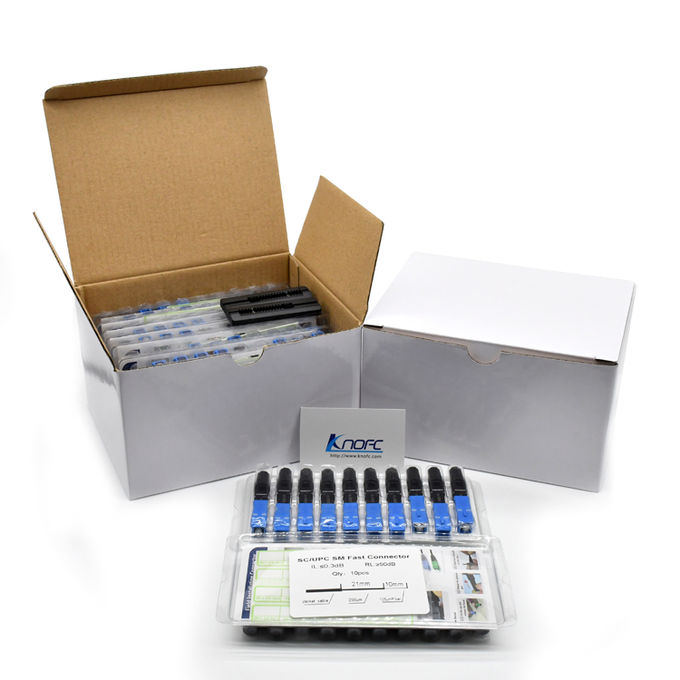

Place of Origin: China Brand Name: KNOFC or OEM Certification: CE/ISO9001 Model Number: Fast Connector SC/UPC Minimum Order Quantity: 1pcs Price: Negotiable Packaging Details: Plastic boxes Supply Ability: 50000pcs/week
|Fiber Type:||Singlemode||Fiber Cable Type:||3x2.0mm Ftth Drop Cable|
|Insertion Loss:||≤ 0.25dB||Return Loss:||≥50dB|
|Application:||FTTH,LAN,PON&Optical CATV||Operating Temperature:||-30°C To+60°C|
|High Light:||CATV Fiber Optic Fast Connector, Drop Cable Fiber Optic Fast Connector, FTTH SC UPC Fast Connector|

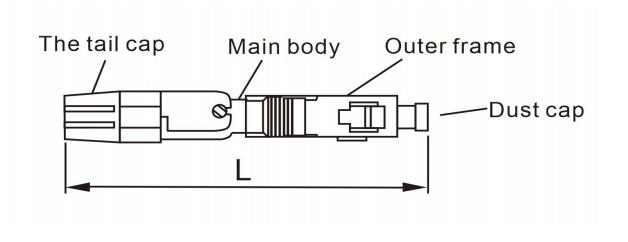

The fast connector designed for FTTH is a new generation of fiber connector used in assembly, fiber connector is a revolutional field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.We provide field installable high reliability fast connectors, our using our top quality ceramic ferrules with reliable and supperior optical performance,their cable tensiletes complied with telcordia GR-326-CORE.Using corning fiber and high temperature cycle test 24hours( -40-85℃) quality is stable working in poor condition.
1.Reliable and superior optical performance.
2.Using corning fiber.
3.Imported Brand matching gel(FIS).
4.Print manufacturer name on fast connector body.
5.Easy for assembling with mechanical splice and no polishing.
6.Lock and open the structure to make sure optical fiber, flexible, easy to use.
7.Operating Wavelength: 1310nm, 1490nm, 1510nm.
8.High temperature cycle test 24hours( -40-85℃) is stable working in poor condition.
9.Analysis 3D ferrule (3D geometry test)
