FTTH Fusion Splice Kit CFS-2 Stripper Fiber Optic Accessories
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Optical Fiber Stripper CFS-2
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden iron drum
Supply Ability: 10000pcs/week
Model Number: CFS-2 Suitable: 1/2 Core Fiber
External Dimension: L165mm*W50mm*H11mm Handle: Plastic Coating
Operation Temperature: -60~+60°C
High Light: CFS-2 Fusion Splicer Kit, CFS-2 Fiber Optic Splicing Tool Kit, Plastic Coating Fusion Splicer Kit

FTTH Fusion Splice Tool Kit Optical Fiber Stripper CFS-2 For Stripping Fiber



TTC10A Lengthwise Fiber Cable Stripper is our patent hand tool, used for stripping the sheath of optical cable. TTC10A is the upgrade type of the TTC10A, and it has both function of the TTC10 and TTC15, which means TTC10A can do both across and lengthwise stripping. It uses unilateralism ratchet wheel to operate, so that the first-time stripped cable has the symmetry hatches on both sides, as we know, the Side Fiber Cable Ripper must strip twice in the Optical Cable Cut-over with Service process, TTC10A overcomes this shortage. It is portable, compact, easy to operate, timesaving; the cut-in depth can be accommodated and can strip at any part of the fiber cable. It can do one-off strip for the fiber cable Ø10~Ø30mm.It is an absolutely necessary tool for the quality guaranteeing and the safety in the fiber cable construction, especially in optical cable stripping for the Optical Cable Cut-over with Service.



For stripping 250 micron buffer coating to expose 125 micron cladded fiber
--- Second hole for stripping 2-3mm fiber jackets
--- 140 µm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
--- Pre-set at the factory - no adjustments needed
--- Will not scratch or nick glass fiber
--- All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
--- Comfort-grip, ergonomic handles
--- Lock to hold tool closed when it is not in use

Technical Data:

 Production name Fiber optic stripper
 Material Steel+plastic coating
 Size L165mm*W50mm*H11mm
 Weight 120g
 Packing 1pc/bag,1 bag/ box

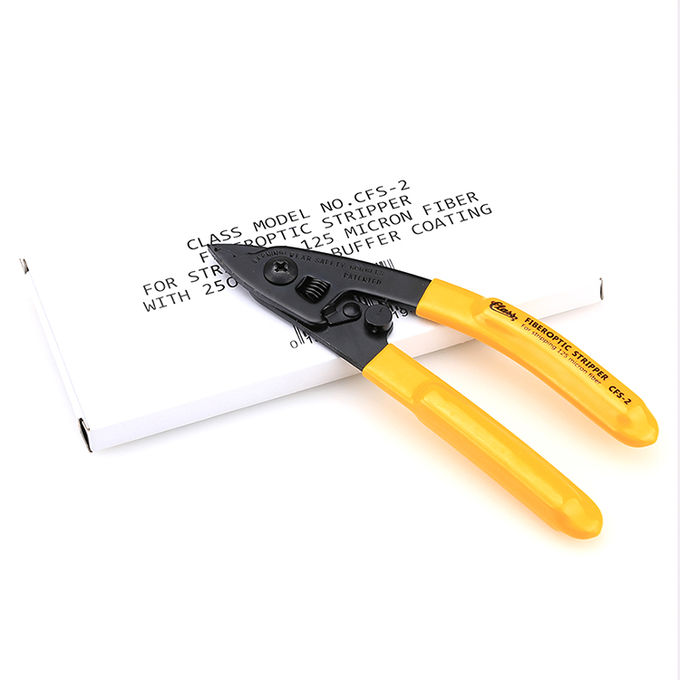

FTTH Fusion Splice Kit CFS-2 Stripper Fiber Optic Accessories 0

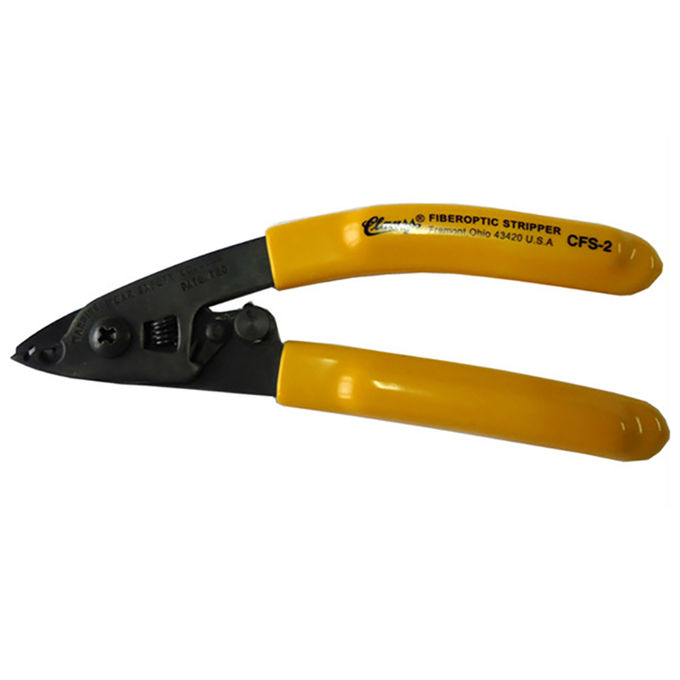

FTTH Fusion Splice Kit CFS-2 Stripper Fiber Optic Accessories 1
