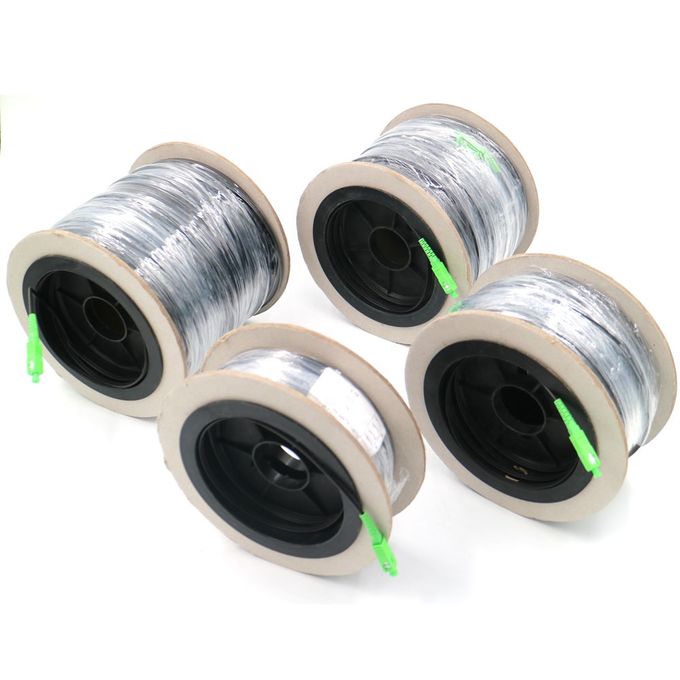

FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored
  • FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored
  • FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored
  • FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: FTTH SC APC Patch Cord
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Individual box or customized
Supply Ability: 60000pcs/Month
Connector Type: SC/APC Cable Type: Flat Drop Cable Or FTTH Drop Cable Or Round Cable
Length: 3M 5M 10M Or Customized Application: FTTH
Fiber Type: G657A2 Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning / KNOFC
Jacket Material: HDPE / LSZH / TPU Operating Temperature: -40°C To+70°C
High Light: FTTH Optic Fiber Optic Jumper, HDPE Optic Fiber Optic Jumper, SC APC Armored Cable Jumper

FTTH SC APC Armored Black 9/125 SM SX Optic Fiber Optic Jumper



FTTH Patch cord or pigtail, refers to the drop cable ends with a connector plug, used to achieve optical active connection, also be made into a single head pigtails, and Flexible Splice, Quick connect and other products combined application, Connector types are SC-PC(APC) and FC-PC(APC) , For FTTH project corridor boxes, drop cable distribution boxes, FTTH fiber boxes and other forms of installation.



  • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
  • Can be installs without special tooling.
  • Threaded style coupling.
  • Provides bend protection for installation and long term use.
  • Faster network roll out and customer installations.
  • 100% tested assemblies built in a controlled environment.
  • Lower cost deployment by utilizing plug and play solutions.
  • Custom built solutions with quick turnaround times.


  • Fiber optic communications in harsh outdoor environments.
  • Outdoor communication equipment connection.
  • FTTx ISP Project.


 Product Name  SC APC Armored Patch Cord
 Length  1M/5M/10M/15M/20M
 Connection Style  Simplex
 Fiber Type  G657A2
 Typical Insertion Loss  ≤ 0.20 dB
 Maximum Insertion Loss  ≤ 0.30 dB


Connector technical data:

 Items  Values
 Connector Type  SC/APC
 Insertion Loss  <0.3dB
 Return Loss  >60dB


Cable technical data:

 Item  Values
 Cable Type  Outdoor FTTH Drop Cable
 Sheath Material  LSZH
 Messenger Wire  1.0±0.02mm
 Steel Wire  0.5±0.02mm
 Fiber Type  G657A1 / G657A2
 Cable Diameter  (2.0±0.1)x(5.0±0.2)mm


Cable Paremeters:

 Cable type  Diameter(mm)   Weight
  Tensile strength
   Long/short term
  Bending radius
 Storage temperature
            ( ℃ )
 GJYXCH-1~4    2.0*5.0mm     22         300/600       20D/10D          -20~+70


FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored 0
