Place of Origin: China Brand Name: KNOFC Certification: CE/ISO9001 Model Number: OPGW 12 Core Minimum Order Quantity: 1km Price: Negotiable Packaging Details: Iron-wooden drum Delivery Time: 8-10 working days Supply Ability: 600000/Month
| Fiber Type: | G652D Or As Your Request | Fiber Brand: | YOFC / Fiberhome / Corning / KNOFC |
| Fiber Count: | 2-72 Core | Strength Material: | Aluminum Alloy Wire |
| Application: | Overhead Power Systems | Life Expectancy: | More Than 30 Years |
| Operating Temperature: | -40°C To+70°C | ||
| High Light: | G652D 12 Core Fiber Optic Cable, 12 Core OPGW Fiber Optic Cable, G652D OPGW Wiring Aerial Cable | ||
OPGW Cable Aerial Wire 48 Core G652D Usd on Power Systems
Description:
The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. Two or three stainless steel optical tubes are helically stranded in the inner layer of a multiple-layer strandard cable. The multiple loose tube type is designed mostly for very high fiber count requirement over 48 with the maximum fiber count reaching 144. The multiple loose tube type can meet the requirement of huge cross and large current capacity.
Features:
1. Cable diameter and weight approximate with another ground wire. Less additional load to tower, high tensile strength.
2. Excellent stainless steel tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Optical fibers are protected by stainless steel tubes.
4. Excellent security, good bullet resist performance.
5. ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity and mechanical tensile strength.
Characteristic:
1. Stainless steel tubes filled with hydrophobic gel provide the protection and support of the optical fibres.
2. Accurate process control ensures good mechanical and temperature performances.
3. Larger diameter, larger fibre count.Stable structure and high reliability.
4. High tensile strength and large short time current capacity to reach optimum balance of mechanical and electrical properties.
Application:
Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with double function of ground wire and communication. Especially for installation on normal voitage and extra high voltage power lines. OPGW can replace conventional ground wire of old power line with increasing fiber communication function. They conduct short circuit current and provide lightning resistance.
Constructions and Performance:
| Classification | Material | Value | |
| Construction | Optical Fibre | G652D/G655 etc. | 2 - 96 |
| Protection Tube | Stainless steel tube | 1.5 - 6mm | |
| Stranded Line | AS wire/AA wire/Al Rod | 1.5 - 6mm | |
| Max. Diameter | 18mm | ||
| Max. Cross Section | 200mm2 | ||
| Characteristic | According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 | ||
| Max. Tensile Strength (RTS ) (kN) | 280 | ||
| Max. Crush Strength(N/100mm) | 2200 | ||
| Max. Short Current Capacity (40℃-200℃)(kA2s) | 100 | ||
| Min. Bending Radius (Dynamic) | 20D | ||
| Min. Bending Radius (Static) | 15D | ||
| Environment Performance | Installation (℃) | -10 to +50 | |
| Transportation and Operation (℃) | -40 to +70 | ||

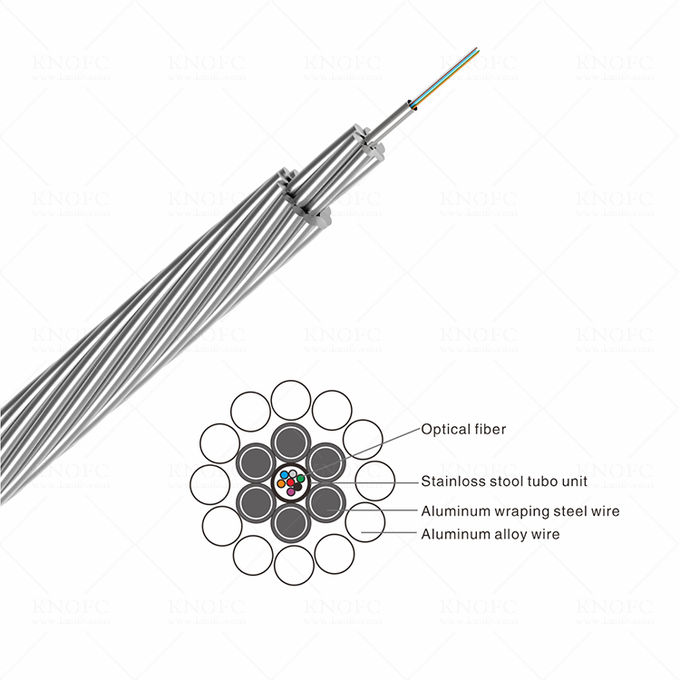

Typical design for Double Layer of OPGW:
Product Type Fiber Count Diameter Rate Tensile Strength Short Time Current Capacity
(mm) (kN) (40-200℃ kA2.s)
OPGW-48B1.3-90- [112;45] 48 13.2 ≥112 ≥45
OPGW-48B1.3-90- [57;67] 48 13.2 ≥57 ≥67
OPGW-24B1.3-100-[118;50] 24 13.2 ≥118 ≥50
OPGW-24B1.3-100-[60;74] 24 13.2 ≥60 ≥74
OPGW-24B1.3-110-[133;63] 24 14 ≥133 ≥63
OPGW-24B1.3-110-[140;68] 24 14.3 ≥140 ≥68
OPGW-24B1.3-110-[67;95] 24 14.1 ≥67 ≥95
OPGW-36B1.3-120-[145;73] 36 14.6 ≥145 ≥73
OPGW-36B1.3-120-[95;98] 36 14.6 ≥95 ≥98
OPGW-36B1.3-120-[74;110] 36 14.6 ≥74 ≥110
OPGW-72B1.3-120-[147;76] 72 15.2 ≥147 ≥76
OPGW-72B1.3-120-2[96;101] 72 15.2 ≥96 ≥101
OPGW-72B1.3-120-[74;114] 72 15.2 ≥74 ≥114
OPGW-36B1.3-130-[155;85] 36 15.2 ≥155 ≥85
OPGW-36B1.3-130-[102;114] 36 15.2 ≥102 ≥114
OPGW-36B1.3-130-[79;137] 36 15.2 ≥79 ≥137
OPGW-36B1.3-140-[175;100] 36 16.1 ≥175 ≥100
OPGW-36B1.3-140-[115;140] 36 16.1 ≥115 ≥140
OPGW-36B1.3-145-[86;170] 36 16.1 ≥86 ≥170
OPGW-48B1.3-150-[182;123] 48 16.6 ≥182 ≥123
OPGW-48B1.3-150-[122;165] 48 16.6 ≥122 ≥165
OPGW-48B1.3-150-[95;195] 48 16.6 ≥95 ≥195
OPGW-72B1.3-150-[172;110] 72 16.6 ≥172 ≥110
OPGW-72B1.3-150-[116;147] 72 16.6 ≥116 ≥147
OPGW-48B1.3-170-[198;150] 48 17.6 ≥198 ≥150
OPGW-72B1.3-170-[199;156] 72 18.2 ≥199 ≥156
OPGW-48B1.3-180-[252;125] 48 18.2 ≥252 ≥125
OPGW-48B1.3-180-[211;175] 48 18.2 ≥211 ≥175
OPGW-48B1.3-180-[147;234] 48 18.2 ≥147 ≥234
OPGW-48B1.3-180-[113,262] 48 18.2 ≥113 ≥262
OPGW-48B1.3-235-[268;243.4] 48 20.3 ≥268 ≥243.4
