G657A2 2FRP Outdoor Drop LSZH Single Core Cable

Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: GJYXFCH 1 Core
Minimum Order Quantity: 10km
Price: Negotiable
Packaging Details: Wooden reel with box
Supply Ability: 2000km/week

我要询价

详情介绍

Fiber Count:	1core	Fiber Type:	G657A2
Strengthened Messenger Wire:	Galvanized Steel Wire	Outer Sheath Material:	LSZH - Low Smoke Zero Halogen
Packaging:	Wooden Reel With Box	Application:	FTTH
High Light:	G657A2 LSZH Single Core Cable, LSZH 2FRP Outdoor Drop Cable, 2FRP LSZH Single Core Cable

FTTH Drop Cable Outdoor 1Core G657A2 Fiber 2FRP LSZH Jacket

Description:

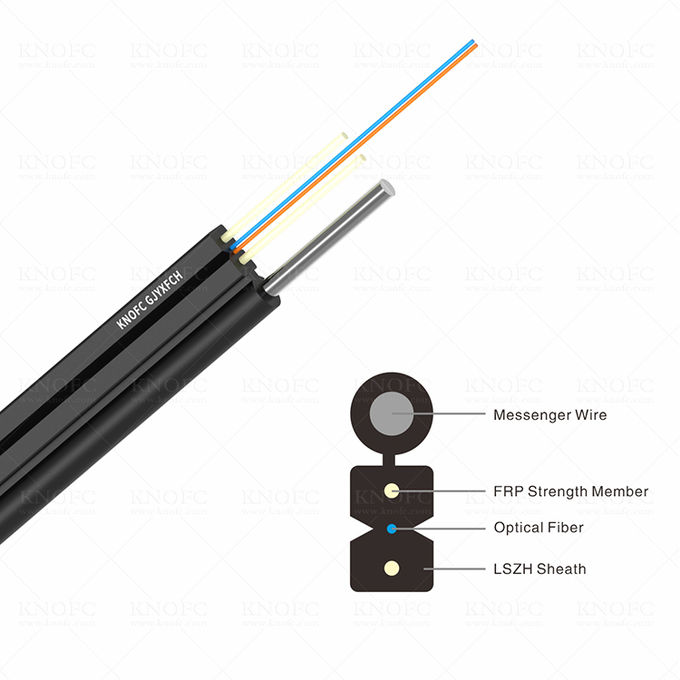

FTTH Drop Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH sheath.

Characteristics:

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication;
transmission property;
Simple structure, light weight and high practicability;
Low smoke, zero halogen and flame retardant sheath.

Application:

Adopted to outdoor distribution;
Suitable for aerial, pipeline laying method;
As FTTH cable,for outdoor horizontal and vertical cabling.

Technical Data:

Item	Contents	Value
Central strength member	Material	FRP / KFRP / steel wire
Central strength member	Diameter	0.5mm*2+1.0mm
Outer sheath	Material	LSZH
Outer sheath	Thickness	0.5mm~0.8mm

Cable Mechanical characteristic:

Cable type	Diameter(mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GJYXCH-1~4	2.0*5.0	22	300/600	20D/10D	-20~+70
GJYXFCH-1~4	2.0*5.0	19	300/600	20D/10D	-20~+70
