GYFTY Outdoor Aerial 48 Core Fiber Optic Cable FRP Strength Member

Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYFTY 48 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 200000M/Week

我要询价

详情介绍

Fiber Type:	G652D Or As Your Request	Fiber Brand:	YOFC / Fiberhome / Corning
Fiber Count:	2-288 Core	Strength Member:	FRP
Protective Layer:	Water Blocking Tape	Outer Sheath Material:	HDPE
Application:	Aerial / Duct	Life Expectancy:	More Than 30 Years
Operating Temperature:	-40°C To+70°C	Certification:	ISO9001/CE

GYFTY Outdoor Aerial 48 Core Fiber Optic Cable FRP Strength Member

Description:

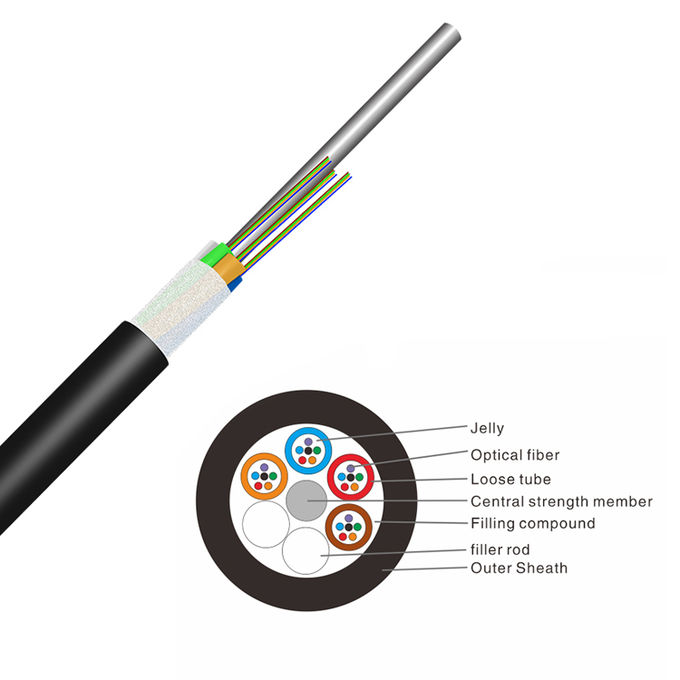

The fibers,250um,, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is wrapped with the water blocking tape to protect it from water ingress,,the cable is completed with a PE sheath.

Characteristics:

1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility.
5. The following measures are taken to ensure the cable watertight:
a.Single Fiber Reinforced Plastic as the central strength member
b. Loose tube filling compound
c. 100% cable core filling

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.

Optical Fiber Characteristic:

No. of Fibers	2-36	38-72	74-96	98-120	122-144	146-216
Max No. of Fibers/Tube	6	12	12	12	12	12
No. of Tube(+Fillers)	6	6	8	10	12	18(2 layers)
Nominal Diameter	10	11	12	13	14	16
Cable Weight(kg/km)	90	120	140	170	190	210
Fiber Type	G.652D/G.655/G.657/OM1/OM2/OM3/OM4/OM5
Max .Allowable Tension	Short Term :3500N
	Long Term:100N MAT:3.5KN RTS:9.0KN
	Wind Speed: ≤30m/s Ics:0mm
Min.Bend Radius (mm)	Dynamic:20D Static:10D (D: Cable diameter)
Temperature Range	-40°C~+70°C(Transportation& Storage)
	-35°C~+65°C(Installation)
	-40°C~+70°C(Operation)

Cable Mechanical characteristic:

Cable type	Diameter (mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Crush Resistance Long/Short Term(N/100mm)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GYFTY-2~60	9.0	85	600/1500	300/1000	20D/10D	-20~+70
GYFTY-62~72	10	95
GYFTY-74~96	11	110
GYFTY-98~120	13	125
GYFTY-122~144	15	145
