GYTA53 144 Core Direct Burial Armored Fiber Optic Cable

Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYTA53 144 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 100000M/Week

我要询价

详情介绍

Fiber Type:	G652D Or As Your Request	Fiber Brand:	YOFC / Fiberhome / Corning
Fiber Count:	2-288 Core	Central Strength Member:	Steel Wire
Protective Layer:	Corrugated Steel Tape	Outer Sheath Material:	HDPE
Application:	Duct / Underground/Aerial	Life Expectancy:	More Than 30 Years
Operating Temperature:	-40°C To+70°C	Certification:	ISO9001/CE
High Light:	GYTA53 Direct Burial Armored Fiber Optic Cable, 144 Core Direct Burial Armored Fiber Optic Cable, GYTA53 144 Core Fiber Optic Cable

144 core GYTA53 armoured direct buried fiber optical cable

Description:

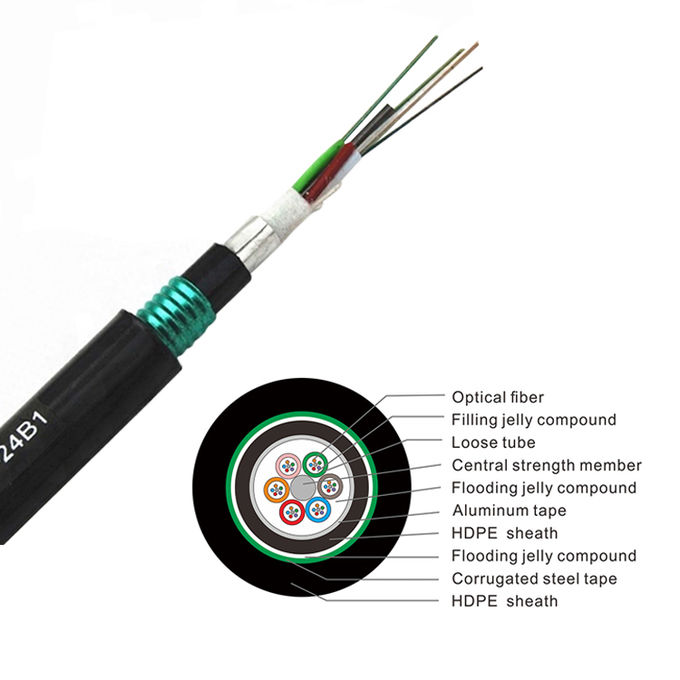

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count,locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core.which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Characteristics:

◆ Good mechanical and temperature performance.
◆ High strength loose tube that is hydrolysis resistant.
◆ Special tube filling compound ensure a critical protection of fiber.
◆ Crush resistance and flexibility.
◆ The following measures are taken to ensure the cable watertight:
➢ Steel wire used as the central strength member
➢ Loose tube filling compound
➢ 100% cable core filling
➢ PSP enhancing moisture-proof
➢ APL moisture barrier

➢ Water-blocking material

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, duct and direct buried.
3. Long distance and local area network communication.

Optical Fiber Characteristic:

No. of Fibers	2-36	38-72	74-96	98-120	122-144	146-216
Max No. of Fibers/Tube	6	12	12	12	12	12
No. of Tube(+Fillers)	6	6	8	10	12	18(2 layers)
Nominal Diameter	10	11	12	13	14	16
Cable Weight(kg/km)	90	120	140	170	190	210
Fiber Type	G.652D/G.655/G.657/OM1/OM2/OM3/OM4/OM5
Max .Allowable Tension	Short Term :3500N
	Long Term:100N MAT:3.5KN RTS:9.0KN
	Wind Speed: ≤30m/s Ics:0mm
Min.Bend Radius (mm)	Dynamic:20D Static:10D (D: Cable diameter)
Temperature Range	-40°C~+70°C(Transportation& Storage)
	-35°C~+65°C(Installation)
	-40°C~+70°C(Operation)

Cable Mechanical Characteristic:

Cable type	Diameter (mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GYTA53-2~60	10.0	140	600/1500	300/1000	20D/10D	-20~+70
GYTA53-62~72	12.0	170
GYTA53-74~96	14.0	210
GYTA53-98~120	15.0	230
GYTA53-122~144	16.0	245
