GYTS multi core armoured fiber optic cable outdoor cable 36 core

Place of Origin: China
Brand Name: KNOFC or OEM
Certification: ISO9001/CE
Model Number: GYTS 36 core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Supply Ability: 300km/week

我要询价

详情介绍

Fiber Type:	SM G652D	Fiber Count:	2-288 Cores
Outer Sheath Of Material:	HDPE	Strength Member:	Steel Wire
Armored Layer:	Corrugated Steel Tape	Application:	Duct/Aerial

GYTS multi core armoured fiber optic cable outdoor cable 36 core

Description:

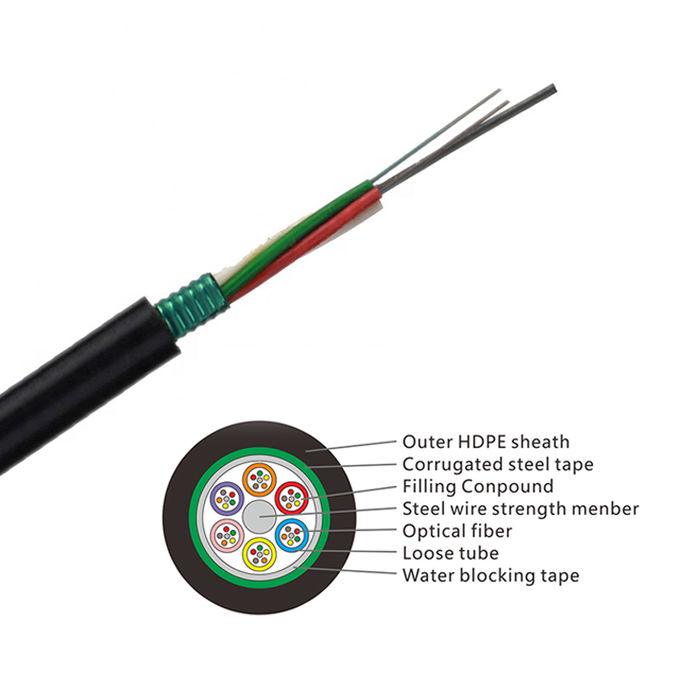

The fibers,250um,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress, the cable is completed with the HDPE sheath.

Characteristics:

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cable from ultraviolet radiation

Feature:

Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof

Application:

Adopted to outdoor distribution
Suitable for aerial, pipeline laying method
Long distance and local area network communication

Optical Fiber Characteristic:

		G.652.D	G.655	50/125μm	62.5/125μm
Attenuation	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

Cable Mechanical characteristic:

Cable type	Diameter(mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GYTS-2~60	9.5	105	600/1500	20D/10D	-20~+70
GYTS-62~72	10.5	130	600/1500	20D/10D	-20~+70
GYTS-74~96	12.0	160	600/1500	20D/10D	-20~+70
GYTS-98~120	14.0	220	600/1500	20D/10D	-20~+70
GYTS-122~144	16.0	280	600/1500	20D/10D	-20~+70
GYTS-146~288	20.0	340	600/1500	20D/10D	-20~+70
