Place of Origin: China Brand Name: KNOFC Certification: ISO9001/CE Model Number: GYXTW 12 Core Minimum Order Quantity: 1km Price: Negotiable Packaging Details: Wooden drum Delivery Time: 8-10 working days Supply Ability: 300km/week
|Fiber Type:||G652D Or As Your Request||Fiber Brand:||YOFC / Corning Or As Your Request|
|Fiber Count:||2-12 Core||Strength Member:||Steel Wire|
|Outer Sheath Material:||HDPE||Application:||Aerial / Duct|
|Life Expectancy:||More Than 30 Years||Operating Temperature:||-40°C To+70°C|

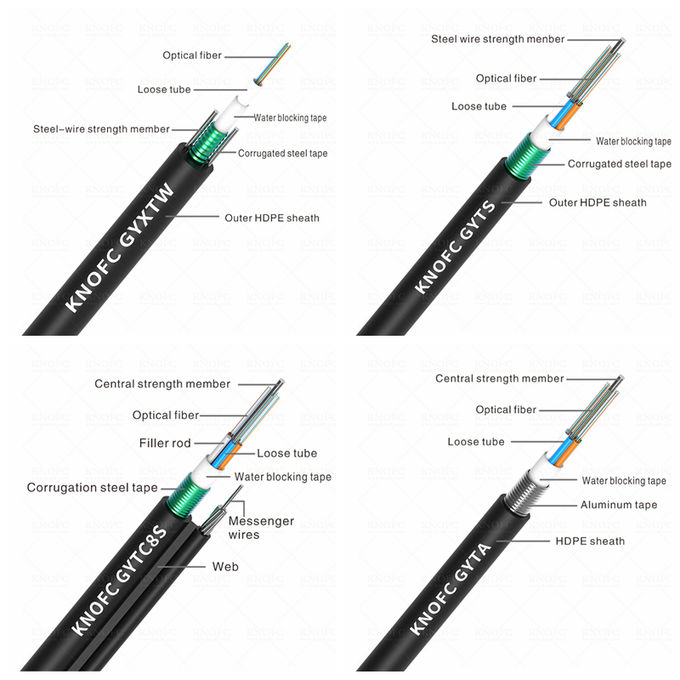

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
* Good mechanical and temperature performance.
* High strength loose tube that is hydrolysis resistant.
* Special tube filling compound ensure a critical protection of fiber.
* Crush resistance and flexibility.
* PSP enhancing moisture-proof.
* Two parallel steel wires ensure tensile strength.
* Small diameter, light weight and friendly installation.
1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.
|Attenuation||@850nm||≤3.0 dB/km||≤3.0 dB/km|
|@1300nm||≤1.0 dB/km||≤1.0 dB/km|
|@1310nm||≤0.36 dB/km||≤0.40 dB/km|
|Bandwidth||@850nm||≥500 MHz·km||≥200 MHz·km|
|@1300nm||≥1000 MHz·km||≥600 MHz·km|
|Cable Cut-off Wavelengthλcc||≤1260nm||≤1480nm|
|Cable type||Diameter (mm)||Weight (kg/km)||
Long/short term (N)
|Crush Resistance Long/Short Term(N/100mm)||
|Storage temperature ( ℃ )|
