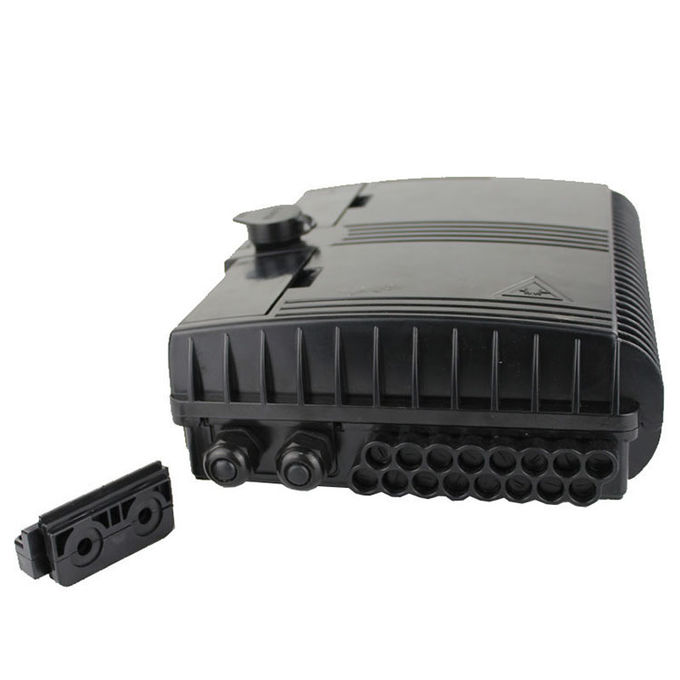

IP65 16 Port FTTH Optical Fiber Terminal Box
  • IP65 16 Port FTTH Optical Fiber Terminal Box
  • IP65 16 Port FTTH Optical Fiber Terminal Box
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Distribution Box 16 C
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: box
Supply Ability: 1000pcs/week
Fiber Count: 16Core Material: ABS New Material
IP Grade: IP65 PLC Splitter: 1x8 1x16
Installation Way: Pole Mount Or Wall Mount Ports: 2 Cable Ports+16 Drop Cable Ports
Size: 300x230x87mm Application: FTTX Network
High Light: 16 Port Optical Fiber Terminal Box, FTTH Optical Fiber Terminal Box, IP65 16 Port Terminal Box

Fiber Optic Distribution Box 16 Core FTTH Optical Fiber Terminal Box



Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.


1. Wall mounting kits : 4 pieces
2. Screws : 4 pieces
3. Cable tie: 10 pieces
4. Heat shrink protective sleeves: 16 pieces
5. Key :1 piece



Dimensions and Capability
dimensions(W*H*D) 270mm*220mm*100mm
Adapter Capacity 16xSC;16xLCDX;1x16 PLC Splitter
Number of Cable Entrance/Exit 2/16
Optional Accessories Adapters, pigtails
Insert Loss ≤0.2dB
UPC Return Loss ≥50dB
APC Return Loss ≥60dB
Weight 1.8KG
Shipping Information
Pakage Contens Distribution box, 1 unit; Keys for lock, 2keys
Wall mount installation accessories,1 set
Package dimensions(W*H*D) 270mm*200mm*100mm
Weight 1.8KG



1. ABS material used ensures the body strong and light
2. Water-proof design for outdoor uses
3. Easy installations: Ready for wall mount – installation kits provided
4. Adapter slots used – No screws and tools needed for installing adapters
5. Ready for splitters: designed space for adding splitters
6. Space saving! Double-layer design for easier installation and maintenances
7. Lower layer for splitters and over length fiber storage
8. Upper layer for splicing, cross-connecting and fiber distribution
9. Cable fixing units provided for fixing the outdoor optical cable
10. Protection Level: IP65
11. Accommodates both cable glands as well as tie-wraps
12. Lock provided for extra security


IP65 16 Port FTTH Optical Fiber Terminal Box 0
