LC UPC 12 Core Bundled Optic Fiber Patch Cord
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Pigtail LC/UPC
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: bag
Supply Ability: 20000pcs/Week
Fiber Type: Single Mode 9/125 Connector Type: LC/UPC
Length: 1M Or Customized Cable Color: White Or Yellow
Cable Diameter: 0.9mm Insertion Loss: ≤0.3dB
Operating Temperature: -20°C To+50°C
High Light: 12 Core Optic Fiber Patch Cord, Bundled Optic Fiber Patch Cord, 12 Core LC UPC Patch Cord

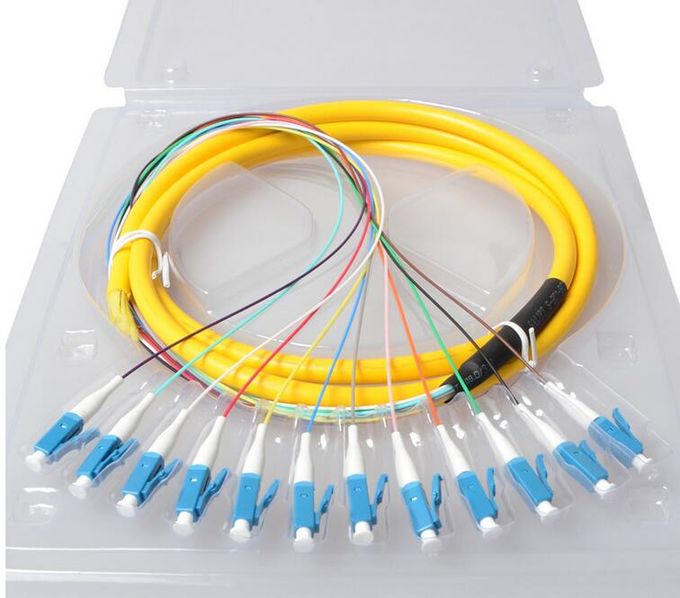

Optical Pigtail LC UPC 12 Core Bundled Optic Fiber Patch Cord



The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with connectors fixed on one ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. According to the transmission medium, it divides Single Mode and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.


1. Type FC Fiber Optic Patchcord and Pigtail
2. Single mode and Multimode PC or 8 degree APC 9 degree APC
3. Cable 0.9mm, 2.0mm, 2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 Core
4. Customized length
5. Cable color green, yellow, orange or Customized Designs
6. Cable PVC,Hytrel,LSZH,OFNP,OFNR
7. All parts compliant with ROHS
8. IEC standard compatible
9. All parts compliant with ROHS
10. GR-326-CORE Compliant



 Parameter Unit Mode Type PC UPC APC
 Insertion Loss dB SM ≤0.3 ≤0.3 ≤0.3
 Insertion Loss dB MM ≤0.3 ≤0.3 -----
 Return Loss dB SM ≥50 ≥50 ≥60
 Return Loss dB MM ≥35 ≥35 -----
 Fiber cable Material PVC, LSZH
 Fiber cable Diameter 0.9mm, 2.0mm, 3.0mm
 Connector type SC, LC. ST. FC
 Repeatability dB Additional loss<0.1db,return loss< 5 dB
 Interchangeability dB Additional loss<0.1db,return loss< 5 dB
 Connection times times >1000
 Operating Temperature ℃ -20℃- +70℃
 Storage Temperature ℃ -20℃- +70℃



  • FTTH, LAN, Test equipment, Military industry.
  • Outside plant.
  • Premise networks.
  • Aerial distribution.
  • Measuring equipments.
  • Fiber optic communication system.
  • Optical active component and equipment.


LC UPC 12 Core Bundled Optic Fiber Patch Cord 0
