Fiber Optic Pigtail
Current location:Home   >>  Products   >>  Fiber Optic Jumper   >>  Fiber Optic Pigtail

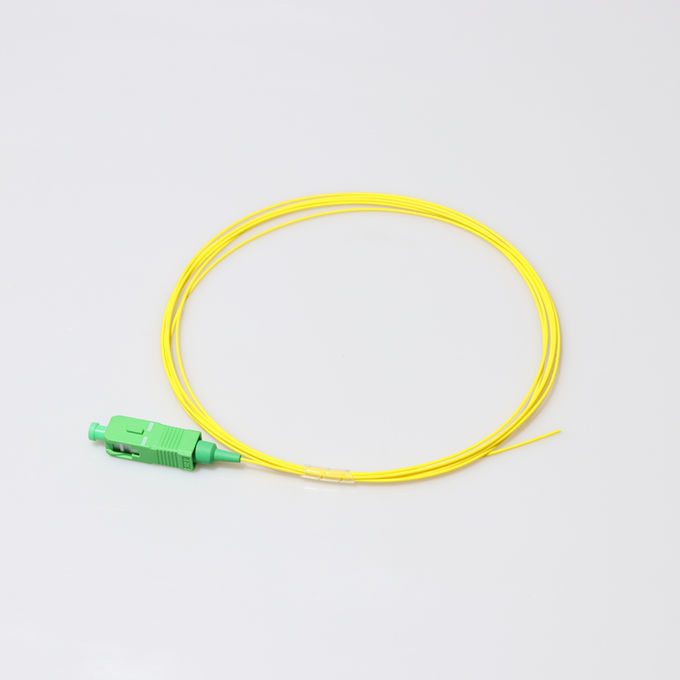

SM G657A1 900um Tight Buffer LSZH 1M SC APC Fiber Optic Pigtail
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Pigtail SC/APC
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: bag
Supply Ability: 20000pcs/Week
Fiber Type: Single Mode 9/125 Connector Type: SC/APC
Length: 1M Or Customized Cable Color: White Or Yellow
Cable Diameter: 0.9mm Insertion Loss: ≤0.3dB
Operating Temperature: -20°C To+50°C
High Light: 900um SC APC Fiber Optic Pigtail, 1M SC APC Fiber Optic Pigtail, G657A1 900um SM SC Pigtail

SC APC Pigtail Optical SM G657A1 900um Tight Buffer LSZH 1M



The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with connectors fixed on one ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. According to the transmission medium, it divides Single Mode and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.



  • Good durability.
  • Good exchangeability.
  • High temperature stability.
  • Low insertion loss and back reflection loss.
  • Superior Quality Standard PC/UPC/APC Polishin.



  • FTTH, LAN, Test equipment, Military industry.
  • Outside plant.
  • Premise networks.
  • Aerial distribution.
  • Measuring equipments.
  • Fiber optic communication system.
  • Optical active component and equipment.


 Parameter Unit Mode Type PC UPC APC
 Insertion Loss dB SM ≤0.3 ≤0.3 ≤0.3
 Insertion Loss dB MM ≤0.3 ≤0.3 -----
 Return Loss dB SM ≥50 ≥50 ≥60
 Return Loss dB MM ≥35 ≥35 -----
 Fiber cable Material PVC, LSZH
 Fiber cable Diameter 0.9mm, 2.0mm, 3.0mm
 Connector type SC, LC. ST. FC
 Repeatability dB Additional loss<0.1db,return loss< 5 dB
 Interchangeability dB Additional loss<0.1db,return loss< 5 dB
 Connection times times >1000
 Operating Temperature ℃ -20℃- +70℃
 Storage Temperature ℃ -20℃- +70℃


SM G657A1 900um Tight Buffer LSZH 1M SC APC Fiber Optic Pigtail 0

SM G657A1 900um Tight Buffer LSZH 1M SC APC Fiber Optic Pigtail 1
