SM MM Indoor GJFJV Simplex Multimode Fiber Optic Cable
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: GJFJV 1 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 600000M/Week
Fiber Type: SM / MM Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 1 Core Cable OD: 2.0 Mm / 3.0 Mm
Protect Layer: Kevlar Yarn Jacket Material: PVC / LSZH
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C
High Light: GJFJV Indoor Fiber Optic Cable, GJFJV Simplex Multimode Fiber Optic Cable, 3.0mm Simplex Multimode Fiber Optic Cable

GJFJV Simplex Indoor Fiber Optic Cable Single Mode Multimode

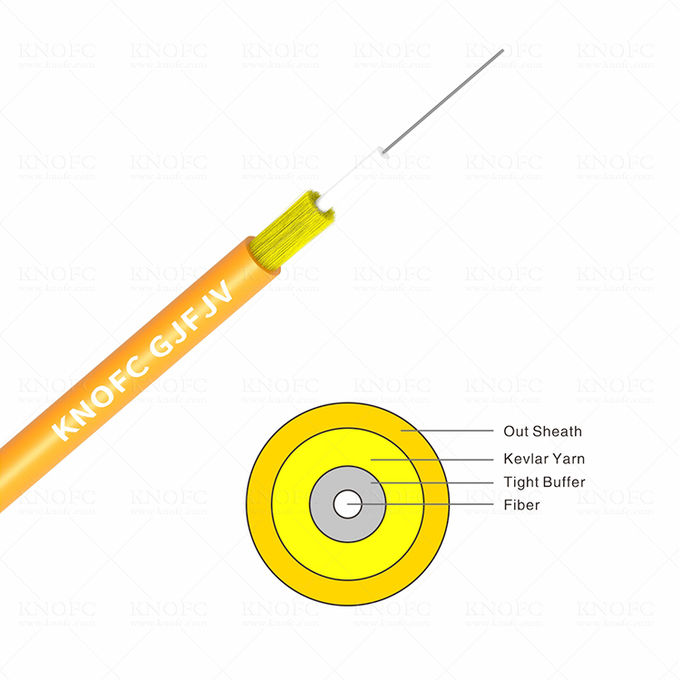

GJFJV Multi-Purpose Distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.


Technical Parameters:

Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature   ( ℃ )


Mechanical requirements and methods of fiber cable:


Tensile strength10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33%
Crush2200N/100mm, conform to IEC 794-1-E3
ImpactConform to IEC 794-1-E4
Repeated bendingConform to IEC 794-1-E6
TorsionConform to IEC 794-1-E7
FlexingConform to IEC 794-1-E8
KinkConform to IEC 794-1-E10
Cable bendConform to IEC 794-1-E11
VibrationConform to IEC 794-1
Water penetrationConform to IEC 794-1-F5B
AbrasionConform to IEC 794-1-E2
Temperature cycling testConform to IEC 794-1-F1
Dielectric strength of outer jacketConform to ITU-T Rec.K25



1. Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
2. Good performance of flame-retardant.
3. Low induced attenuation within the operating temperature range.
4. Excellent geometrical dimension of the fiber.



1. Components for various indoor cables.
2. Suitable for patch cords and pigtails.
3. Suitable for communication equipment served.
