Ftth Flat Cable Sc Upc Apc K4 Fiber Optic Adapter
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: K4 Fast Connector
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic box
Supply Ability: 50000pcs/week
详情介绍
iber Type: Singlemode Fiber Cable Type: 3x2.0mm Ftth Drop Cable
Insertion Loss: ≤ 0.25dB Return Loss: ≥50dB
Application: FTTH,LAN,PON&Optical CATV Operating Temperature: -30°C To+60°C
High Light: K4 Fiber Optic Adapter, Sc Upc Apc Fiber Optic Adapter, K4 Fiber Optic Cable Adapter

Optical Fiber Fast Connector Ftth Flat Cable K4 Quick Adapter Sc Upc Apc



Description:

The fast connector designed for FTTH is a new generation of fiber connector used in assembly, fiber connector is a revolutional field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.We provide field installable high reliability fast connectors, our using our top quality ceramic ferrules with reliable and supperior optical performance,their cable tensiletes complied with telcordia GR-326-CORE.Using corning fiber and high temperature cycle test 24hours( -40-85℃) quality is stable working in poor condition.



Features:

1. Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
2. Double V-slot structure design, fiber optic docking is stable and reliable;
3. The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
4. Applicable optical cable: 2.0mm×3.0mm & 2.0mm×1.6mm butterfly cable;
5. Easy to operate, fast construction, high installation success rate, long life cycle, easy maintenance in the later period.



Specification:

Itemvaule
Ferrule end-facePC UPC APC
Connector typeFC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4 and SMA
Cable typeSX/LSZH
ModeSM:9/125
Cable diameter2.0mm,3.0mm
Insertion loss≤0.2 and ≤0.3dB
Return loss≥50 and ≥65dB
Exchangeability≤0.2dB
Vibration≤0.2dB
Operating temperature-40 to 75℃
Storage temperature-45 to 85℃
Tensile force50N/static state 30N/used state



Application:

1. Applied to open FTTH fiber terminal
2. Used in closure boxes, cabinets, teminal boxes, etc
3. Recovery and maintenance in fiber breakage and other accidents
4. LAN, WAN, data and video transmission
5. Construction and maintenance of fiber access for end users
6. Fiber entry for mobile base stations

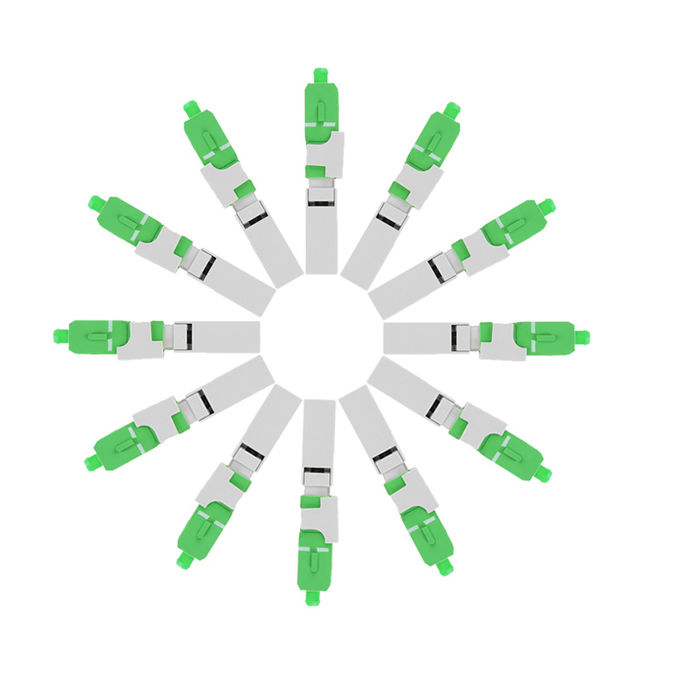

Ftth Flat Cable Sc Upc Apc K4 Fiber Optic Adapter 0

Ftth Flat Cable Sc Upc Apc K4 Fiber Optic Adapter 1
