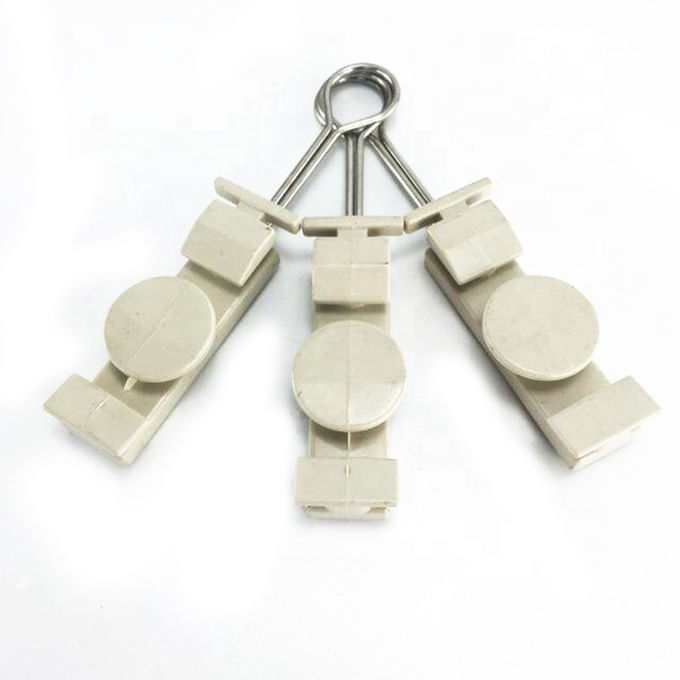

FTTH Drop Fiber Stainless Steel Anchoring Wire Tension Clamp
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Drop Fiber Plastic Flat Cable Clamp for FTTH
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden iron drum
Supply Ability: 1000pcs/week
详情介绍
Number Of Conductors: 1 Type: Hardware Fittings
Cable Diameter: 3mm Application: Ftth Drop Cable Connect
MBL: 1.5KN Operation Temperature: -60~+60°C
High Light: 1.5KN Stainless Steel Cable Clamp, Stainless Steel Wire Tension Clamp, 1.5KN Anchoring Wire Tension Clamp

FTTH Drop Fiber Plastic Stainless Steel Cable Clamp Wire Tension Clamp Anchoring Clamp



Description:

FTTH anchor clamp is designed to tension steel wire dia up to 3 mm of FRP messenger of drop cable in outdoor FTTX.Drop cable anchor clamp is used on dead-end fiber optic cables.FTTH drop cable S-type fitting is easy in installation,and requires preparation of optical cable before attaching.Open hook self-locking construction perform easiest installation on fiber pole.This type of FTTH plastic cable accessory has the principle of a round route for fixing the messenger, this helps to secure it as tightly as possible.



Features:

Stainless steel wire ball allows installations of FTTH clamp drop wire on a pole brackets,SS hooks.Anchor FTTH optical fiber clamp and drop wire cable brackets are available either separately or together as assembly.FTTH Drop cable anchor clamps passed the tensile tests,operation experience with temperatures ranging from -60degree up to 60 degree test,temperature cycling test,aging test,corrosion resistant test.

 MODEL ODWAC-22
 Length(mm) 220mm
 Messenger diameter
over insulation(mm)
 4~7
 MBL(kN) 1.5KN
 Weight(kg) 0.04KG
 Material

 Stainless Steel





Aplication:

For installation put an aerial drop wire cable in clamp’s shell. Place a part of tension clamp on top of optical fiber or telephone cable with raised embossing, against cable. Insert wedge in shell. Install the bail wire on drop wire hook and fixate in shell.



FTTH Drop Fiber Stainless Steel Anchoring Wire Tension Clamp 0
