G652D ADSS Aerial 24 Core Single Mode Fiber Optic Cable
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: ADSS 24core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden Drum
Supply Ability: 500000M/Week
详情介绍
Product Name: ADSS Fiber Cable 24 Core Fiber Type: Single Mode / Multimode
Fiber Count: 2-288cores Jacket Material: HDPE Or AT
Supporting Strength: Aramid Yarn/Kevlar Yarn Central Strength Member: FRP
Span: 50-1000M Application: Self-Support Aerial
High Light: G652D 24 Core Single Mode Fiber Optic Cable, ADSS Aerial Single Mode Fiber Optic Cable, 24 Core G652D Fiber Optic Cable

24 Core G652D ADSS Single Mode Fiber Optic Cable Use on Aerial



Description:

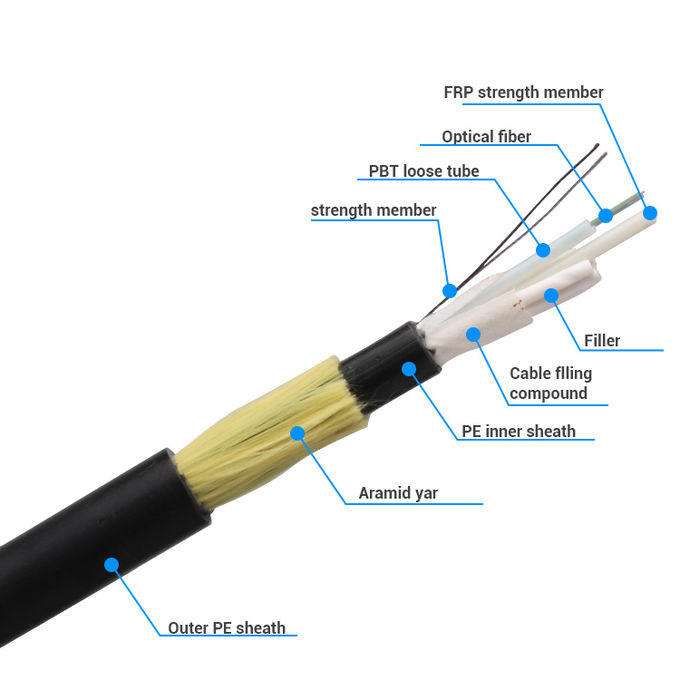

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water- blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (HDPE) or AT sheath.



Characteristics:

1. Can be installed without shutting off the power.

2. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.

3. Large span lengths and the largest span is over 1000m.

4. Good performance of tensile strength and temperature.



Application:

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.



Cable Mechanical Characteristic:

  Cable type     Diameter(mm)   Weight
  (kg/km)
  Tensile strength
  Long/short term
          (N)
  Bending radius
  Dynamic/static
          (mm)
  Storage temperature
            ( ℃ )
 ADSS-2~60          10.0       110       1000/3000       20D/10D         -20~+70
 ADSS-62~72          12.0       120       1000/3000       20D/10D         -20~+70
 ADSS-74~96          14.0       130       1000/3000       20D/10D         -20~+70
 ADSS-98~144          16.0       185       1000/3000       20D/10D         -20~+70
 ADSS-146~288          20.0       298       1000/3000       20D/10D         -20~+70



Main mechanical & environmental performance test:

G652D ADSS Aerial 24 Core Single Mode Fiber Optic Cable 0

G652D ADSS Aerial 24 Core Single Mode Fiber Optic Cable 1
