G652D MGTSV Mining Flame Retardant 24 Core Fiber Optic Cable
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: MGTSV 24 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 100000M/Week
详情介绍
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 2-288 Core Central Strength Member: Steel Wire
Protective Layer: Corrugated Steel Tape Outer Sheath Material: LSZH
Application: Mine Life Expectancy: More Than 30 Years
Operating Temperature: -40°C To+70°C Certification: ISO9001/CE
High Light: G652D MGTSV Flame Retardant Cable, G652D 24 Core Fiber Optic Cable, MGTSV 24 Core Fiber Optic Cable


Mining Flame-retardant Fiber Optic Cable 24 Core G652D MGTSV



Description:

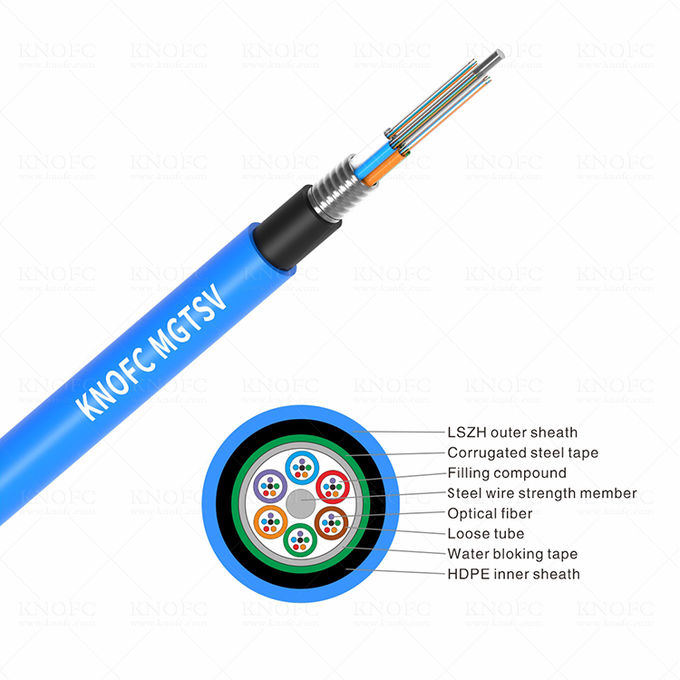

The structure of the MGTSV optical cable is to sheath a 250µm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforced core. For some fiber optic cables, a layer of polyethylene (PE) needs to be squeezed outside the metal reinforced core. The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking fillers. Double-sided plastic coated steel tape (PSP) is longitudinally wrapped and then extruded into a cable with a flame-retardant sheath.



Characteristics:

1. Has good mechanical properties and temperature characteristics
2. The loose tube material itself has good hydrolysis resistance and high strength
3. The tube is filled with special grease to protect the optical fiber critically
4. The specially designed compact optical cable structure effectively prevents the sleeve from retracting
5. Good pressure resistance and flexibility
6. Special sheath materials have excellent flame retardant properties
7. Use the following measures to ensure the waterproof performance of the optical cable:
          a. Single steel wire center reinforcement core
          b. The loose tube is filled with special waterproof compound
          c. Complete cable core filling
          d. Double-sided plastic coated steel tape (PSP) improves the moisture resistance of the optical cable



Application: Coal Mine



Cable Mechanical characteristic:



Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature    ( ℃ )
MGTSV-2~6010.0140600/1500300/100020D/10D-20~+70
MGTSV-62~7212.0170
MGTSV-74~9614.0210
MGTSV-98~12015.0230
MGTSV122~14416.0245
