GYTC8S Self Supporting Figure 8 96 Core Aerial Optic Fiber Cable
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYTC8S 96 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 100000M/Week
详情介绍
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 2-288 Core Central Strength Member: Steel Wire
Protective Layer: Corrugated Steel Tape Outer Sheath Material: HDPE
Installation: Self- Supporting Aerial Life Expectancy: More Than 30 Years
Operating Temperature: -40°C To+70°C Certification: ISO9001/CE
强调: 96core Aerial Optic Fiber Cable, GYTC8S Aerial Optic Fiber Cable, GYTC8S Figure 8 Fiber Optic Cable


Figure 8 cable 48 core G652D fiber optic cable GYTC8S fiber cable



Description:

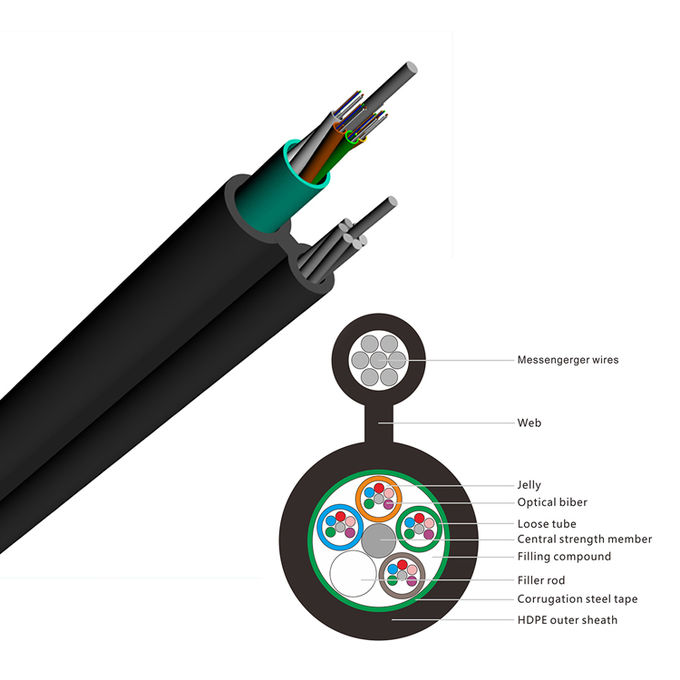

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.


Characteristics:

◆ Good mechanical and temperature performance.
◆ High strength loose tube that is hydrolysis resistant.
◆ Special tube filling compound ensure a critical protection of fiber.
◆ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
◆ The following measures are taken to ensure the cable watertight:
          ➢ Steel wire used as the central strength member
          ➢ Loose tube filling compound
          ➢ 100% cable core filling
          ➢ PSP enhancing moisture-proof
          ➢ Water-blocking material



Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial.
3. Long distance and local area network communication.



Optical Fiber Characteristic:

No. of Fibers2-3638-7274-9698-120122-144146-216
Max No. of Fibers/Tube61212121212
No. of Tube(+Fillers)668101218(2 layers)
Nominal Diameter101112131416
Cable Weight(kg/km)90120140170190210
Fiber TypeG.652D/G.655/G.657/OM1/OM2/OM3/OM4/OM5
Max .Allowable TensionShort Term :3500N
Long Term:100N MAT:3.5KN RTS:9.0KN
Wind Speed: ≤30m/s Ics:0mm
Min.Bend Radius (mm)Dynamic:20D Static:10D (D: Cable diameter)
Temperature Range-40°C~+70°C(Transportation& Storage)
-35°C~+65°C(Installation)
-40°C~+70°C(Operation)



Cable Mechanical Characteristic:

Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature    ( ℃ )
GYTC8S-2~368.6*15140600/1500300/100020D/10D-20~+70
GYTC8S-38~7210.5*16.9190
GYTC8S-74~9612*19250
GYTC8S-98~12013*20270
GYTC8S-122~14415*22305
