GYTS Single Mode Duct 24 Core Armoured Fiber Optic Cable
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYTS 24 core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Supply Ability: 300km/week
详情介绍

Fiber Type: SM G652D Fiber Count: 2-288 Cores
Outer Sheath Of Material: HDPE Strength Member: Steel Wire
Armored Layer: Corrugated Steel Tape Application: Duct/Aerial
High Light: 24 Core Armoured Fiber Optic Cable, GYTS 24 Core Armoured Fiber Optic Cable, 24 Core Single Mode Fiber Optic Cable

GYTS 24 core Single mode Outdoor Duct Armored Fiber Optic Cable



Description:

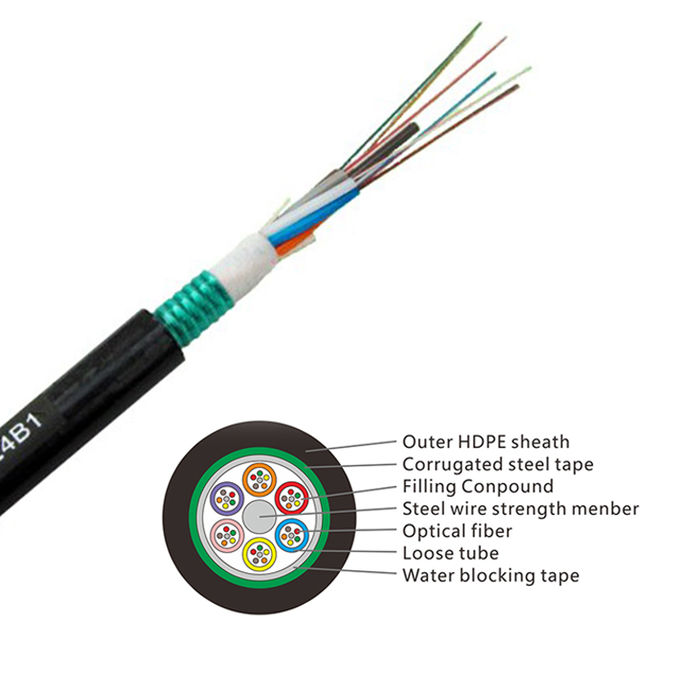

The fibers,250um,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress, the cable is completed with the HDPE sheath.



Characteristics:

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Specially designed compact structure is good at preventing loose tubes from shrinking
  • PE sheath protects cable from ultraviolet radiation

Feature:

  • Steel wire used as the central strength member
  • Loose tube filling compound
  • 100% cable core filling
  • PSP enhancing moisture-proof

Application:

  1. Adopted to outdoor distribution
  2. Suitable for aerial, pipeline laying method
  3. Long distance and local area network communication

Optical Fiber Characteristic:

No. of Fibers 2-36 38-72 74-96 98-120 122-144 146-216
Max No. of Fibers/Tube 6 12 12 12 12 12
No. of Tube(+Fillers) 6 6 8 10 12 18(2 layers)
Nominal Diameter 10 11 12 13 14 16
Cable Weight(kg/km) 90 120 140 170 190 210
Fiber Type G.652D/G.655/G.657/OM1/OM2/OM3/OM4/OM5
Max .Allowable Tension Short Term :3500N
Long Term:100N MAT:3.5KN RTS:9.0KN
Wind Speed: ≤30m/s Ics:0mm
Min.Bend Radius (mm) Dynamic:20D Static:10D (D: Cable diameter)
Temperature Range -40°C~+70°C(Transportation& Storage)
-35°C~+65°C(Installation)
-40°C~+70°C(Operation)



Cable Mechanical characteristic:

  Cable type  Diameter(mm)    Weight
 (kg/km)
 Tensile strength
 Long/short term
           (N)
 Bending radius
 Dynamic/static
        (mm)
 Storage temperature
             ( ℃ )
 GYTS-2~60               9.5        105           600/1500        20D/10D              -20~+70
 GYTS-62~72              10.5        130           600/1500        20D/10D              -20~+70
 GYTS-74~96              12.0        160           600/1500        20D/10D              -20~+70
 GYTS-98~120              14.0        220           600/1500        20D/10D              -20~+70
 GYTS-122~144              16.0        280           600/1500        20D/10D              -20~+70
 GYTS-146~288              20.0        340           600/1500        20D/10D              -20~+70
