GYXTW Cable Central Tube Outdoor Aerial 6 Core SM Fiber Optic Cable
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYXTW 6 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 300km/week
详情介绍
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Corning Or As Your Request
Fiber Count: 2-24 Core Strength Member: Steel Wire
Outer Sheath Material: HDPE Application: Aerial / Duct
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C

GYXTW Cable Central Tube Outdoor Aerial 6 Core SM Fiber Optic Cable



Description:

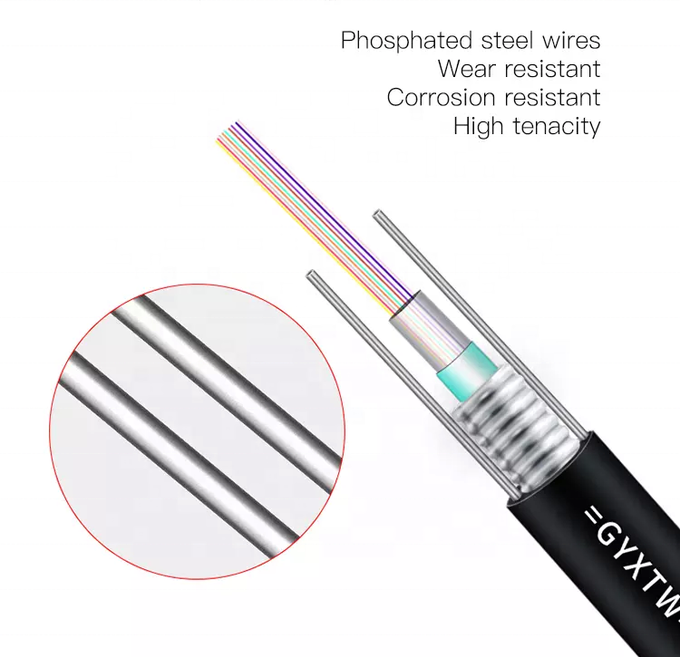

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.



Characteristics:

  • Low dispersion and attenuation.
  • Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties.
  • Double-jacket structure make cable have nice properties of moisture resistance and crush resistance.
  • With small cable diameter, light cable weight, easily to lay.



Application:

1. Adopted to outdoor distribution.

2. Suitable for aerial, pipeline laying method.

3. Long distance and local area network communication.



 Cable Mechanical characteristic:

Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature   ( ℃ )
GYXTW-2~24870600/1500300/100020D/10D-40~+70
