GYXTW G652D 6 Core Single Mode Armoured Fiber Optic Cable
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYXTW 6 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 200000M/Week
详情介绍

Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Corning Or As Your Request
Fiber Count: 2-24 Core Strength Member: Steel Wire
Outer Sheath Material: HDPE Application: Aerial / Duct
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C
High Light: GYXTW 6 Core Fiber Optic Cable, 6 Core Single Mode Armoured Fiber Optic Cable, GYXTW Armoured Fiber Optic Cable

Single Mode Outdoor Armoured GYXTW 6 Core G652D Fiber Optic Cable



Description:

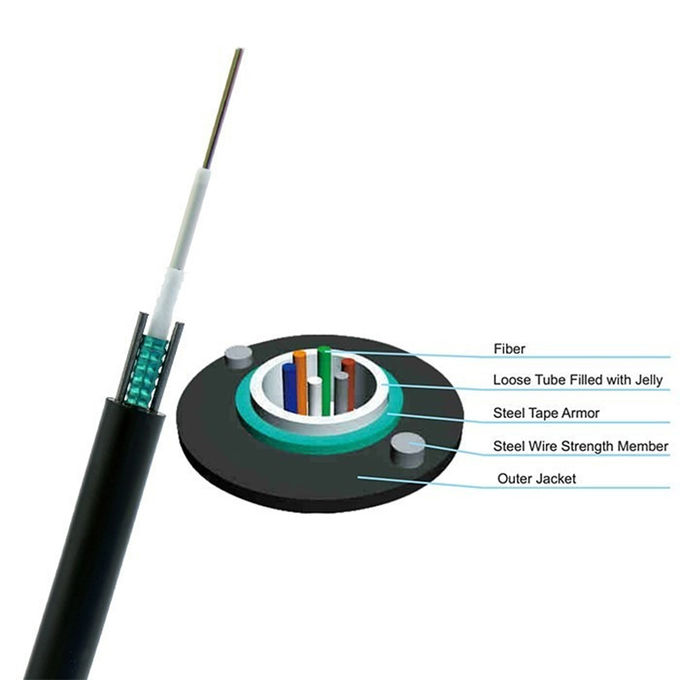

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.



Characteristics:

1. Good mechanical and temperature performance.

2. High strength loose tube that is hydrolysis resistant.

3. Special tube filling compound ensure a critical protection of fiber.

4. Crush resistance and flexibility.

5. PSP enhancing moisture-proof.

6. Two parallel steel wires ensure tensile strength.

7. Small diameter, light weight and friendly installation.

8. Long delivery length.



Application:

1. Adopted to outdoor distribution.

2. Suitable for aerial, pipeline laying method.

3. Long distance and local area network communication.



 Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)
Storage temperature   ( ℃ )
GYXTW-2~24 8 70 600/1500 300/1000 20D/10D -40~+70



Main mechanical & environmental performance test:

Tensile strength 10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33%
Crush 2200N/100mm, conform to IEC 794-1-E3
Impact Conform to IEC 794-1-E4
Repeated bending Conform to IEC 794-1-E6
Torsion Conform to IEC 794-1-E7
Flexing Conform to IEC 794-1-E8
Kink Conform to IEC 794-1-E10
Cable bend Conform to IEC 794-1-E11
Vibration Conform to IEC 794-1
Water penetration Conform to IEC 794-1-F5B
Abrasion Conform to IEC 794-1-E2
Temperature cycling test Conform to IEC 794-1-F1
Dielectric strength of outer jacket Conform to ITU-T Rec.K25
