Current location:Home   >>  Products   >>  Optic Fiber Cable   >>  Indoor Fiber Cable
SM MM Indoor GJFJV Simplex Multimode Fiber Optic Cable
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: GJFJV 1 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 600000M/Week
详情介绍
Fiber Type: SM / MM Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 1 Core Cable OD: 2.0 Mm / 3.0 Mm
Protect Layer: Kevlar Yarn Jacket Material: PVC / LSZH
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C
High Light: GJFJV Indoor Fiber Optic Cable, GJFJV Simplex Multimode Fiber Optic Cable, 3.0mm Simplex Multimode Fiber Optic Cable

GJFJV Simplex Indoor Fiber Optic Cable Single Mode Multimode



Description:

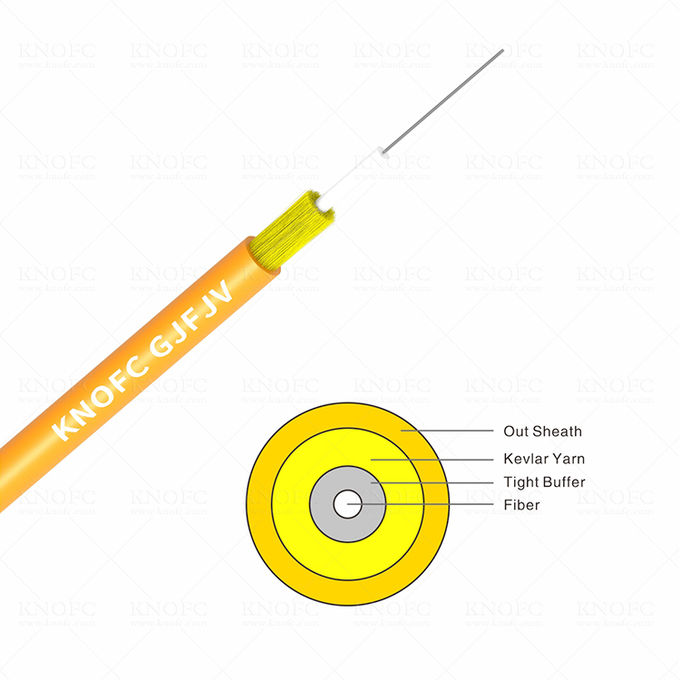

GJFJV Multi-Purpose Distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.



Technical Parameters:

Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature   ( ℃ )
GJFJV-12.04.580/150300/100020D/10D-40~+70
GJFJV-13.07.5



Mechanical requirements and methods of fiber cable:



Tensile strength10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33%
Crush2200N/100mm, conform to IEC 794-1-E3
ImpactConform to IEC 794-1-E4
Repeated bendingConform to IEC 794-1-E6
TorsionConform to IEC 794-1-E7
FlexingConform to IEC 794-1-E8
KinkConform to IEC 794-1-E10
Cable bendConform to IEC 794-1-E11
VibrationConform to IEC 794-1
Water penetrationConform to IEC 794-1-F5B
AbrasionConform to IEC 794-1-E2
Temperature cycling testConform to IEC 794-1-F1
Dielectric strength of outer jacketConform to ITU-T Rec.K25



Features:

1. Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
2. Good performance of flame-retardant.
3. Low induced attenuation within the operating temperature range.
4. Excellent geometrical dimension of the fiber.



Application:

1. Components for various indoor cables.
2. Suitable for patch cords and pigtails.
3. Suitable for communication equipment served.



 SM MM Indoor GJFJV Simplex Multimode Fiber Optic Cable 0
