Place of Origin: China Brand Name: KNOFC Certification: CE/ISO9001 Model Number: GJYXCH 1 Core Minimum Order Quantity: 10km Price: Negotiable Packaging Details: Wooden reel Delivery Time: 8-10 working days Supply Ability: 2000000M/Week
|Fiber Count:||1, 2, 4 Core||Fiber Type:||G657A2|
|Strengthened Messenger Wire:||Galvanized Steel Wire||Outer Sheath Material:||LSZH - Low Smoke Zero Halogen|
|Packaging:||Wooden Reel With Box||Application:||FTTH|
|Life Expectancy:||More Than 30 Years||Operating Temperature:||-40°C To+70°C|
|High Light:||G657A Outdoor Drop Cable, LSZH Jacket Outdoor Drop Cable, G657A 0.5 Mm Single Core Cable|

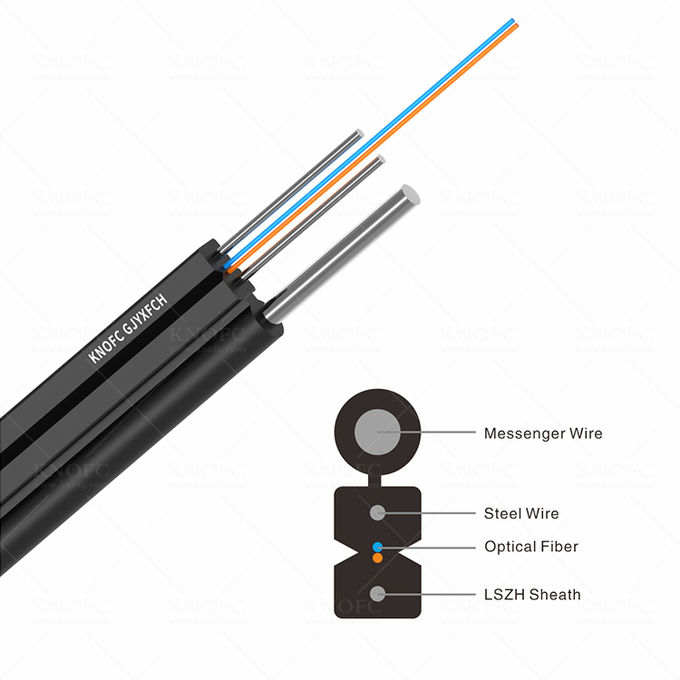

FTTH Drop Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH sheath.
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2. Simple structure, light weight and high practicability;
3. Low smoke, zero halogen and flame retardant sheath.
1. Adopted to outdoor distribution;
2. Suitable for aerial, pipeline laying method;
3. As FTTH cable,for outdoor horizontal and vertical cabling.
|Central strength member||Material||FRP / KFRP / steel wire|
|Central strength member||Diameter||0.5mm*2+1.0mm|
|Attenuation||@850nm||≤3.0 dB/km||≤3.0 dB/km|
|@1300nm||≤1.0 dB/km||≤1.0 dB/km|
|@1310nm||≤0.36 dB/km||≤0.40 dB/km|
|Bandwidth||@850nm||≥500 MHz·km||≥200 MHz·km|
|@1300nm||≥1000 MHz·km||≥600 MHz·km|
|Cable Cut-off Wavelengthλcc||≤1260nm||≤1480nm|
| || || || |
