12 Port Fiber Optic Patch Panel Rack Mount Fiber Optic Terminal Box
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Patch Panel 12 Ports
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: carton
Supply Ability: 50000pcs/month
详情介绍
12 Ports Fiber Optic Patch Panel Rack Mount Type Optical Fiber Terminal Box



Description:

Optical splitter closure provides space and protection for the fiber optic cable splicing and joint.Fiber optic closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.



Features:

1). High quality PC, ABS, PPR material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion
and strong temperature changes.
2). Solid structure, perfect outline, thunder, erosion and adding resistance.
3). Strong and reasonable structure with mechanical sealing structure, can be opened after sealing and cab be reused.
4). Well water and dust proof, unique grounding device to ensure the sealing performance, convenient for installation.
5). The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength
engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.



Technique Performance:

1. External size 480x250x1U, 2U,
2. Fiber capacity from 12 cores to 48 cores
3. Insertion loss: <0.3dB
4. Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
5. Winding radius ≥40mm
6. Working temperature -25°C~+45°C
7. Atmosphere pressure 70~106Kpa
8. Insulated Resistance 2×10MΩ/500V(DC)W
9. Voltage- resistance:Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.



Specification:

NameDesktop 12 Ports SC Pigtail Fiber Optic Patch Panel
TypeDesktop
Accessories12 pcs sc pigtail, 12pcs sm sc adapters
Dimensions265*130*40mm(Length*Depth*Height)
Iron Plate Thickness0.6mm
Weight0.6kg
ColorBlack paint
MaterialCold-rolled plate
Storage/Working Temperature-40~+85℃



Application:

1. Widely used in FTTH access network
2. Telecommunication networks
3. CATV networks, LAN Network
4. Data communications networks
5. Local area networks
6. Active device termination

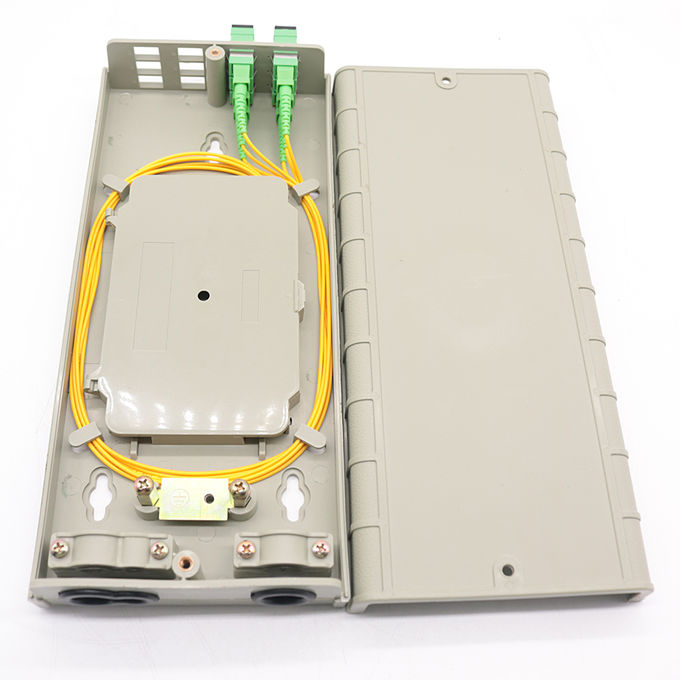

12 Port Fiber Optic Patch Panel Rack Mount Fiber Optic Terminal Box 0

12 Port Fiber Optic Patch Panel Rack Mount Fiber Optic Terminal Box 1

12端口光纤配线架机架安装式光纤接线盒



描述:

分光器封闭件为光缆的熔接和连接提供了空间和保护。光纤封闭件属于光纤熔接段系统的容纳区。它被广泛应用于光纤的连接中,起到密封,保护,光纤连接器头的安装和存放的作用。



特征:

1)。高质量的PC,ABS,PPR材料可选,可以确保恶劣的条件,例如振动,冲击,拉力电缆变形
和强烈的温度变化。
2)。坚固的结构,完美的轮廓,雷声,侵蚀和增加阻力。
3)。具有机械密封结构的坚固合理的结构,密封后可以打开,驾驶室可以重复使用。
4)。井眼防水防尘,独特的接地装置,确保密封性能,安装方便。
5)。接头盒适用范围广,密封性能好,安装方便,采用高强度
工程塑料外壳制造,具有抗老化,耐腐蚀,耐高温,机械强度高等特点。



技术性能

1.外部尺寸480x250x1U,2U,
2.从12芯光纤容量到48个内核
3.插入损耗:<0.3分贝
4.回波损耗:PC <40分贝,UPC <50分贝,APC <60分贝
5.卷绕半径≥40mm
6 。工作温度-25° C〜+ 45°C
7.大气压力70〜106Kpa
8.绝缘电阻2×10MΩ/ 500V(DC)W
9.耐电压:在3kv / DC / 1min的作用下,非刺破,无飞弧。



规格:

姓名台式机12端口SC尾纤光纤配线架
类型桌面
配件12个SC尾纤,12个SM SC适配器
方面265 * 130 * 40mm(长*深*高)
铁板厚度0.6毫米
重量0.6公斤
颜色黑漆
材料冷轧板
储存/工作温度-40〜+ 85℃



应用:

1.广泛用于FTTH接入网络
2.电信网络
3. CATV网络,LAN网络
4.数据通信网络
5.局域网
6.有源设备终端



12端口光纤配线架机架安装式光纤接线盒0

12端口光纤配线架机架安装式光纤接线盒1
