144 Core Underground Inline Cable Fiber Optic Splice Closure
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Dome Joint Closure 144 C
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Box
Supply Ability: 1000pcs/week
详情介绍
Size: 21*21*4.5 Cm Inlet & Outlet: 3+1 Oval Ports
Installation Way: Pole / Wall Mount Sealing Way: Heat Shrink Sealing
Type: Horizontal Material: 100% PC
High Light: 144 Core Fiber Optic Splice Closure, Underground Fiber Optic Splice Closure, 144 Core Joint Closure Box

Underground Inline Fiber Optic Cable Splice Joint Closure Box 144 Core



Description:

These fiber optic splice closure can be used in underground, aerial, and wall-mounting applications. The open typed box is made from the high-quality pc and with the mechanical sealing structure filled with the sealing material. Besides, the external component and fastening piece are all made from the high-quality stainless steel. It can be opened after sealing and can be reused after renewing the sealing material.



Features:

  • Slide-in-lock design, over 90 opening angle tray
  • Elastic integrated seal ensure tightening fit
  • Housing provide fire resistant, waterproof, and quakeproof for splices while handing
  • Operating Temperature: -40 ~ +65 °C



Application:

  • Sutable for bunchy fibers.
  • Aerial ,wall-mounting.
  • FTTH optical fiber distribution.



Specification:

Product NameFiber optic splice closure
Colorblack
Coresbunchy 60cores,ribbon 96-144cores
Protection classIP68
SealsMechanical seal
MaterialPC
Cable out of the tube configurationUp to four out of the tube fiber optic cable
Ports diameter(mm)16~22mm
Fiber radius of curvature(mm)30
Dielectric strength(kv)1.5
Ambient temperature(°C)-40~+60
Atmospheric pressure(Kpa)70~1106
Tensile strength(N)>1000
Anti-stress>2000N/ 10cm2 Stress,Time 1min
Insulation Resistance>2X10MΩ/500V(DC)
Compressive strength15KV(DC)/1min. No breakdown.No flashover
Housing dimensions(mm)425*163.5*87mm(L*W*H)
Splice TrayMax 3 pcs, 24 cores each
ScopePole, buried, manholes, wall
Packing0.075m³/8pcs
Total weight1.46kg/1pcs

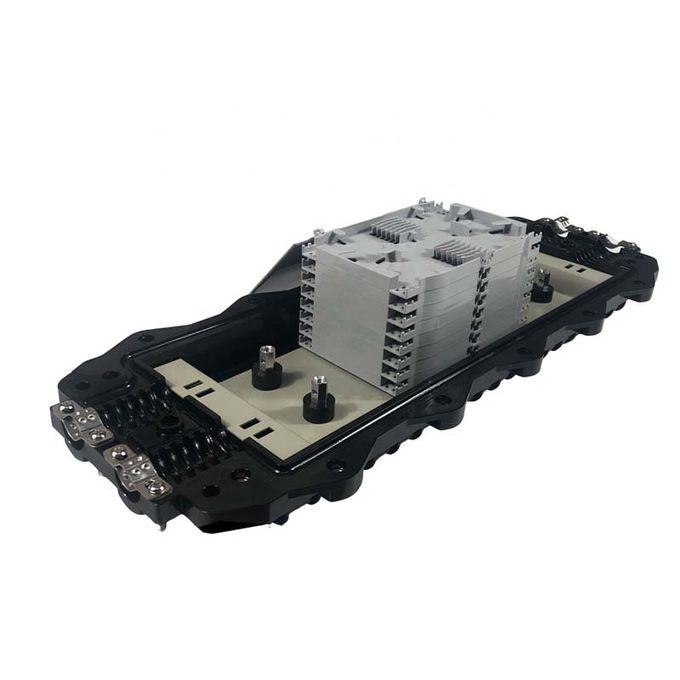

144 Core Underground Inline Cable Fiber Optic Splice Closure 0

144 Core Underground Inline Cable Fiber Optic Splice Closure 1
