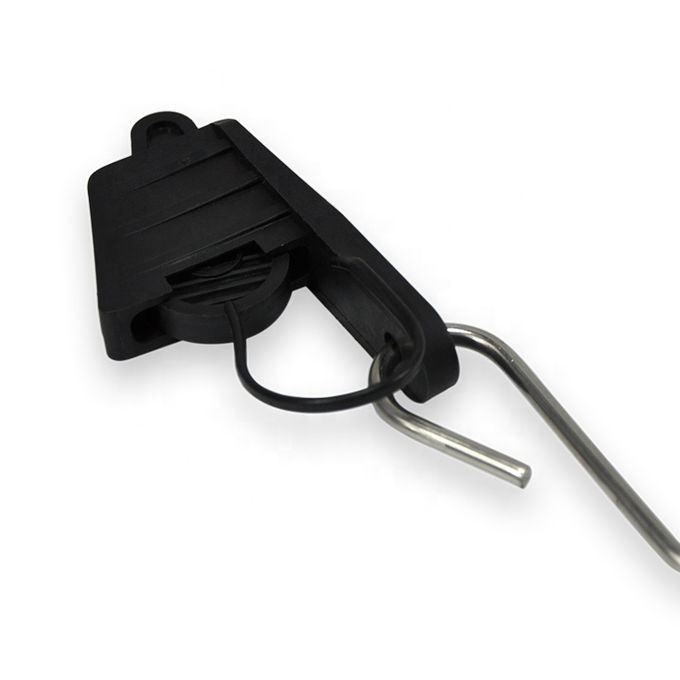

1.5KN FTTH Drop Cable S Hook Clamp Fiber Optic Accessories
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Plastic FTTH Drop Cable Clamp S-hook
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden iron drum
Supply Ability: 1000pcs/week
详情介绍
Number Of Conductors: 1 Type: Hardware Fittings
Cable Diameter: 3mm Application: Ftth Drop Cable Connect
MBL: 1.5KN Operation Temperature: -60~+60°C
Knots: 37319 Shim Type: Dimpled , Serrated , Plastic
Structure: Suspension Clamp Drop Cable: 1-2pair , 6 Pair
High Light: FTTH Drop Cable S Hook Clamp, 1.5KN S Hook Clamp, 1.5KN Fiber Optic Cable Clamp

S Hook Herraje de Fibra Optica FTTH Drop Cable Clamp S Hook



Description:

FTTH drop clamp S-Type designed for suspension or tension round or flat FTTH fiber optic cable or drop wire cable in FTTX construction or telephone drop wires. FTTH clamp S-Type is applied outdoor on routes with short spans up to 50mm.FTTH drop clamp is very easy for installation, and it does not require additional tools, handily adjusted metal S-hoook allows simple installation on cross-arm or suspension brackets and FTTH hooks ,as well.FTTH plastic clamp S-Type has palstic clip for round and flat cable sizes diameter 2.5-5mm or size 2*5mm,which covers most of popular ranges of outdoor FTTH cables. The plastic clip provide the excellent adherence with cable and insure reliable fixation.



Features:

1. The fiber cable tool, S-type for FTTH cable clamp
2. Good Grip Strength
3. Good Dynamic Stress Bearing Capacity
4. Well and High Quality Control


Specification:

Product NameFTTH drop cable wire clamp
Model numberWire clamp
Brand NameWanbao
Weight36g
MaterialPlastic
ColorBlack
SizeL 8.5CM
TypeS Type
Max Load4KN
ApplicationFor ADSS or FTTH drop cable
Max Pull Force65KGS
CharacteristicUV Resistance and strong tensile
FunctionFixed Cable Clamp
SampleAvailable



Aplication:

1. Used to Telecomconstruction
2. Widely used both indoor installation and outdoor installation.
3. Provided with a serrated shim to increase hold on drop wire.
4. Used to support one and two pair telephone drop wire at span clamps,drive hooks, and various drop attachments.



1.5KN FTTH Drop Cable S Hook Clamp Fiber Optic Accessories 0
