2 Core GJYFJH2 OS1 Fiber Optic Cable FTTA Armored Optic Fiber Cable
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GJYFJH2 2 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 200000M/Week
详情介绍
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 2-12 Core Protect Layer: Kevlar Yarn
Outer Sheath Material: PE, PVC, LSZH, TPU Application: FTTX
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C
Armored Material: SUS Spiral Armoured
High Light: FTTA OS1 Fiber Optic Cable, FTTA Armored Optic Fiber Cable, OS1 GJYFJH2 Optic Fiber Cable


FTTA Armored Optic Fiber Cable 2 Core OS1 Fiber GJYFJH2 Cable



Descrition:

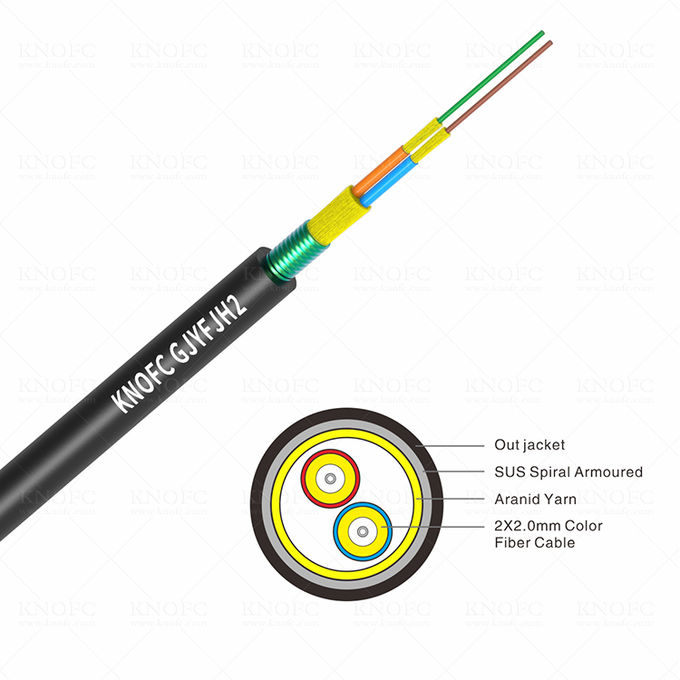

GJYFJH2 Indoor/ Outdoor Cable used as optical transmission medium with 900um subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element, and the cable is completed with outside jacket,(PVC,LSZH,TPU,PE or other material according to customer's requirements).



Features:

1. Good mechanical and temperature characteristics.
2. Good lateral compression and flexibility.
3. Small diameter, light weight, easy to connect, and support large capacity data transmission.
4. Outer jacket material has the advantages of water proof, flame retardant, environmental protection.

5. Mini armored layer used to decrease the outer diameter and cable weight, also convenient for laying and splice.



Application:

1. Remote base station communication such as RRU or BBU
2. Smart substation and CATV Outdoor application.
3. Emergency access to optical fiber communication.
4. Used in FTTX, from residence to datat center and cabling level and vertical, also usedin FTTH cable.



Technical parameters:



Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature  ( ℃ )
GJYFJH2 2-45.030100/300300/100020D/10D-40~+70
GJYFJH2 6-127.050

Packing and Reel Length:
1. Strandard wooden drum with protection.
2. Strandard reel length: 2km/reel 3km/reel, other length is also available.
