48 Core Single Mode Armored Duct GYTA Optic Fiber Cable
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYTA 48 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 200000M/Week
详情介绍
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Corning Or As Your Request
Fiber Count: 2-288core Strength Member: Steel Wire
Strength Tape: APL Outer Sheath Material: HDPE
Application: Aerial / Duct / Direct Burial Life Expectancy: More Than 30 Years
Operating Temperature: -40°C To+70°C Certification: ISO9001/CE
High Light: 48Core GYTA Optic Fiber Cable, ISO9001 GYTA Optic Fiber Cable, Duct Fiber Optic Cable

GYTA Armored 48 Core Duct Fibra Optica Single Mode Outdoor



Description:

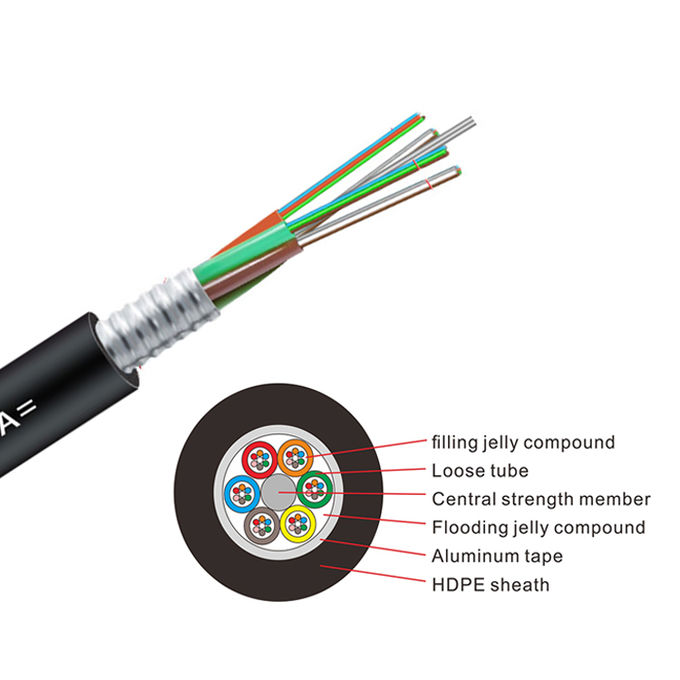

The fibers,250um,, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, the cable is completed with a PE sheath.



Characteristics:

1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Specially designed compact structure is good at preventing loose tubes from shrinking.
5. PE sheath protects cable from ultraviolet radiation.
6. The following measures are taken to ensure the cable watertight:
           a: Steel wire used as the central strength member
           b: Loose tube filling compound
           c: 100% cable core filling
           d: APL moisture barrier



Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.



Optical Fiber Characteristic:

No. of Fibers2-3638-7274-9698-120122-144146-216
Max No. of Fibers/Tube61212121212
No. of Tube(+Fillers)668101218(2 layers)
Nominal Diameter101112131416
Cable Weight(kg/km)90120140170190210
Fiber TypeG.652D/G.655/G.657/OM1/OM2/OM3/OM4/OM5
Max .Allowable TensionShort Term :3500N
Long Term:100N MAT:3.5KN RTS:9.0KN
Wind Speed: ≤30m/s Ics:0mm
Min.Bend Radius (mm)Dynamic:20D Static:10D (D: Cable diameter)
Temperature Range-40°C~+70°C(Transportation& Storage)
-35°C~+65°C(Installation)
-40°C~+70°C(Operation)



Cable Mechanical characteristic:

Cable typeDiameter  (mm)Weight  (kg/km)Tensile strength
Long/short term  (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static  (mm)
Storage temperature   ( ℃ )
GYTA-2~609.0100600/1500300/100020D/10D-20~+70
GYTA-62~7210110
GYTA-74~9611130
GYTA-98~12013145
GYTA-122~14415195
