48 Core SM Armored Underground Teleommunication Optic Fiber Cable GYTY53
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYTY53 48 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 100000M/Week
详情介绍

Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 2-288 Core Central Strength Member: Steel Wire
Protective Layer: Corrugated Steel Tape Outer Sheath Material: HDPE
Application: Duct / Underground/Aerial Life Expectancy: More Than 30 Years
Operating Temperature: -40°C To+70°C Certification: ISO9001/CE
High Light: GYTY53 Armored Underground Cable, GYTY53 Teleommunication Optic Fiber Cable, GYTY53 48 Core Optic Fiber Cable

GYTY53 48Core SM Armored Underground Teleommunication Cable



Description:

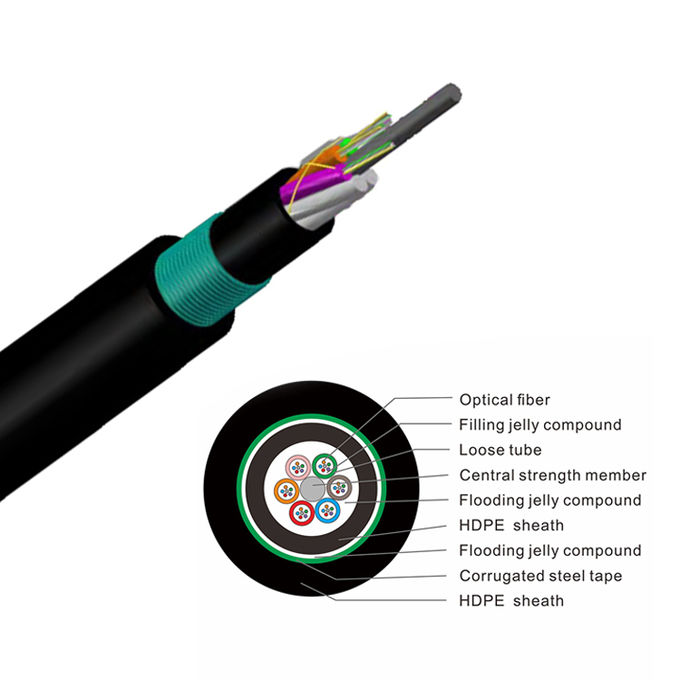

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.



Characteristics:

◆ Good mechanical and temperature performance.
◆ High strength loose tube that is hydrolysis resistant.
◆ Special tube filling compound ensure a critical protection of fiber.
◆ Crush resistance and flexibility.
◆ The following measures are taken to ensure the cable watertight:
          ➢ Steel wire used as the central strength member
          ➢ Loose tube filling compound
          ➢ 100% cable core filling
          ➢ PSP enhancing moisture-proof
          ➢ Water-blocking material



Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, duct and direct buried.
3. Long distance and local area network communication.



Optical Fiber Characteristic:

No. of Fibers2-3638-7274-9698-120122-144146-216
Max No. of Fibers/Tube61212121212
No. of Tube(+Fillers)668101218(2 layers)
Nominal Diameter101112131416
Cable Weight(kg/km)90120140170190210
Fiber TypeG.652D/G.655/G.657/OM1/OM2/OM3/OM4/OM5
Max .Allowable TensionShort Term :3500N
Long Term:100N MAT:3.5KN RTS:9.0KN
Wind Speed: ≤30m/s Ics:0mm
Min.Bend Radius (mm)Dynamic:20D Static:10D (D: Cable diameter)
Temperature Range-40°C~+70°C(Transportation& Storage)
-35°C~+65°C(Installation)
-40°C~+70°C(Operation)



Cable Mechanical Characteristic:

Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature    ( ℃ )
GYTY53-2~6010.0140600/1500300/100020D/10D-20~+70
GYTY53-62~7212.0170
GYTY53-74~9614.0210
GYTY53-98~12015.0230
GYTY53-122~14416.0245
