2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: ISO9001/CE
Model Number: GYXTW 2-24 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 200000M/Week
详情介绍
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Corning Or As Your Request
Fiber Count: 2-24 Core Strength Member: Steel Wire
Outer Sheath Material: HDPE Application: Aerial / Duct
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C


2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication



Description:

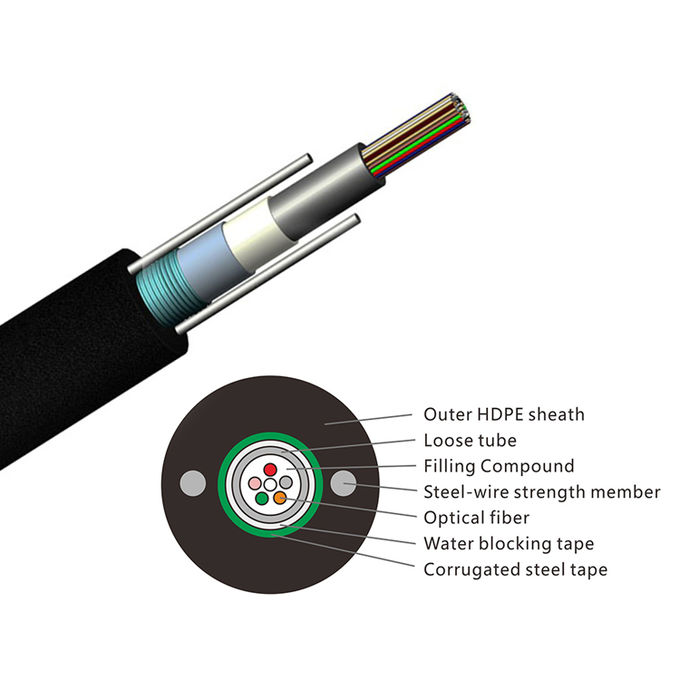

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.



Characteristics:

1. Good mechanical and temperature performance.

2. High strength loose tube that is hydrolysis resistant.

3. Special tube filling compound ensure a critical protection of fiber.

4. Crush resistance and flexibility.

5. PSP enhancing moisture-proof.

6. Two parallel steel wires ensure tensile strength.

7. Small diameter, light weight and friendly installation.

8. Long delivery length.



Application:

1. Adopted to outdoor distribution.

2. Suitable for aerial, pipeline laying method.

3. Long distance and local area network communication.



Optical Fiber Characteristic:

2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication 0



 Cable Mechanical characteristic:

Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature   ( ℃ )
GYXTW-2~24870600/1500300/100020D/10D-20~+70



2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication 1
