600um 900um G652D Armored Simplex Indoor Fiber Cable
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: GJSJV 1 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: wooden drum
Delivery Time: 8-10 working days
Supply Ability: 600000M/Week
详情介绍
Fiber Type: SM / MM Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 1 Core Cable OD: 3.0 Mm / 4.0 Mm
Protect Layer: Kevlar Yarn Jacket Material: PVC / LSZH
Armored: Spiral Steel Tube Life Expectancy: More Than 30 Years
Operating Temperature: -40°C To+70°C
High Light: G652D Armored Simplex Fiber Cable, 900um G652D Indoor Fiber Cable, 600um Indoor Fiber Cable

GJSJV Indoor Armored Fiber Cable Simplex Fiber SM G652D G657A



Description:

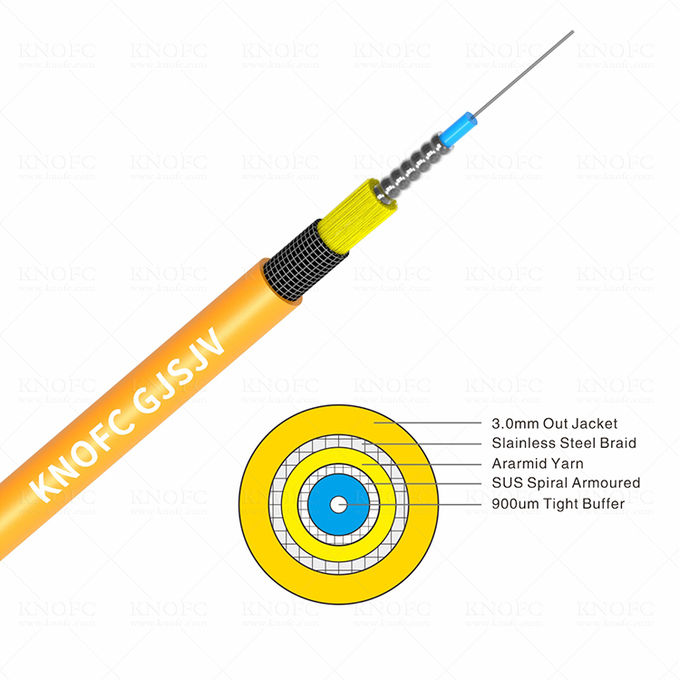

GJSJV Simplex Armored Round Cable use 600um&900um tight buffer fiber, steel tube protect, reinforcing steel-wire braiding (kevlar /aramid yarn), flame-retardant jacket. High indentation strength, high tensile strength, gopher protected, small diameter, flexibility and easy bend.



Features:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meet the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.



Optical Fiber Characteristic:

Fiber TypeG.652D,125.0+-1.0μm
Mode Field Diameter9.2+-0.2μm at 1310 nm
Cladding Diameter125+-1μm
Cladding Non-Circularity<=1%
Coating Diameter245+-10μm
Attenuation Coefficient<=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion<=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength1300-1322nm
PMD Coefficient<=0.2ps/√km



Technical Parameters:

Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature   ( ℃ )
GJSJV-13.01580/150300/100020D/10D-40~+70
GJSJV-14.019



Application:

1. Used in pigtails and patch cords;
2. Used in optical connections in optical communication equipment rooms and optical distribution frames;
3. Used in optical connections in optical apparatus and equipments.
