Armored 96 Core Single Mode Direct Buried GYTS Optic Fiber Cable
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYTS 96 core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 300km/week
详情介绍
Fiber Type: SM G652D Fiber Count: 2-288 Cores
Outer Sheath Of Material: HDPE Strength Member: Steel Wire
Armored Layer: Corrugated Steel Tape Application: Duct/Aerial
High Light: Armored 96 Core Fiber Optic Cable, Single Mode GYTS Optic Fiber Cable, 96 Core Armored Optic Fiber Cable


GYTS Armored 96 Core Single Mode Fiber Optic Cable Direct Buried



Description:

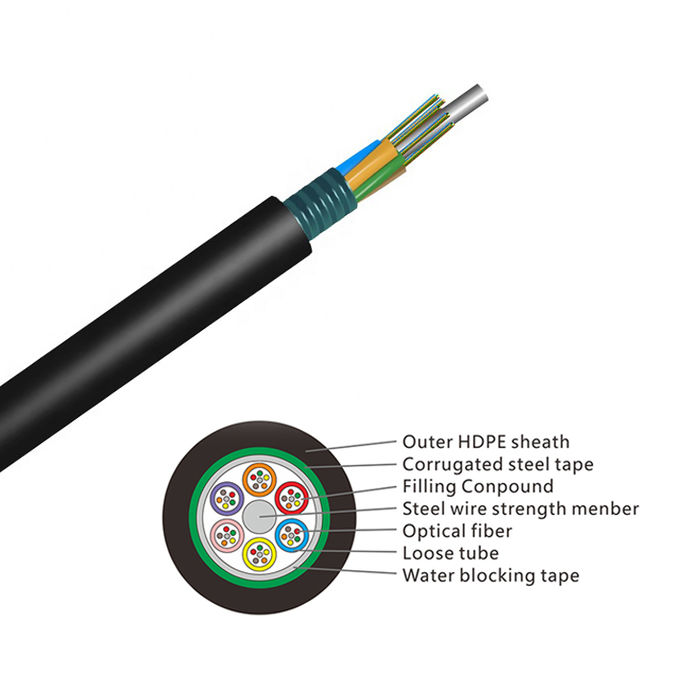

The fibers,250um,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress, the cable is completed with the HDPE sheath.



Characteristics:

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Specially designed compact structure is good at preventing loose tubes from shrinking
  • PE sheath protects cable from ultraviolet radiation



Cable Mechanical characteristic:

  Cable type Diameter(mm)   Weight
 (kg/km)
 Tensile strength
 Long/short term
           (N)
 Bending radius
 Dynamic/static
        (mm)
 Storage temperature
             ( ℃ )
 GYTS-2~60              9.5       105          600/1500       20D/10D             -20~+70
 GYTS-62~72             10.5       130          600/1500       20D/10D             -20~+70
 GYTS-74~96             12.0       160          600/1500       20D/10D             -20~+70
 GYTS-98~120             14.0       220          600/1500       20D/10D             -20~+70
 GYTS-122~144             16.0       280          600/1500       20D/10D             -20~+70
 GYTS-146~288             20.0       340          600/1500       20D/10D             -20~+70



Feature:

  • Steel wire used as the central strength member
  • Loose tube filling compound
  • 100% cable core filling
  • PSP enhancing moisture-proof

Application:

  1. Adopted to outdoor distribution
  2. Suitable for aerial, pipeline laying method
  3. Long distance and local area network communication



Main mechanical & environmental performance test:

ItemTest MethodAcceptance Condition
Tensile Strength
IEC 794-1-2-E1
- Load: Short term tension
- Length of cable: about 50m
- Fiber strain £ 0.15%
- Loss change £ 0.1 dB @1550 nm
- No fiber break and no sheath damage
Crush Test
IEC 60794-1-2-E3
- Load: Short term crush
- Load time: 1min
- Loss change £ 0.05dB@1550nm
- No fiber break and no sheath damage.
Impact Test
IEC 60794-1-2-E4
- Points of impact: 3
- Times of per point: 1
- Impact energy: 5J
- Loss change £ 0.1dB@1550nm
- No fiber break and no sheath damage
Temperature Cycling Test
YD/T901-2001-4.4.4.1
- Temperature step:
+20℃→-40℃→+70℃ →+20℃
- Time per each step: 12 hrs
- Number of cycle: 2
- Loss change £ 0.05 dB/km@1550 nm
- No fiber break and no sheath damage.
