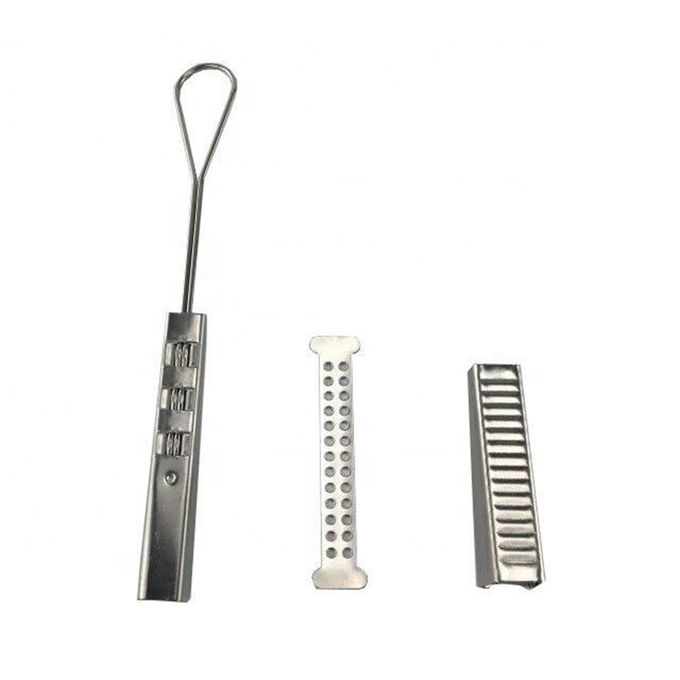

Strap Cable Tension Clamp Drop Wire Fixed Fiber Optic Cable Clamp
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Drop Fiber Plastic Flat Cable Clamp for FTTH
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden iron drum
Supply Ability: 1000pcs/week
详情介绍
Number Of Conductors: 1 Type: Hardware Fittings
Cable Diameter: 3mm Application: Ftth Drop Cable Connect
MBL: 1.5KN Operation Temperature: -60~+60°C
High Light: 1.5KN Cable Tension Clamp, 1.5KN Wire Tension Clamp, Drop Wire Fixed Fiber Optic Cable Clamp

FTTH Tension Clamp For Drop Wire Fiber Optic Clamp Fixed Cable Stainless Steel Strap



Description:

Fiber optic drop cable clamps are made of stainless steel materials, so as to perform excellent in corrosion, abrasion and tensile strength resistance. The products are strong and durable, these products are widely applied in suspension, stretching and fixing cable wire and optical cable.



Features:

1. Materials: Stainless steel drop wire clamps are made by stainless steel 304,430 or aluminum.
2. Bail wire materials: stainless steel 430.
3. Shim: plastic shim and stainless steel shim.
4. Tensile or pull force: 240-320kgs.
5. 480000pcs per 20ft container.



Specification:

 MODEL ODWAC-22
 Length(mm) 220mm
 Messenger diameter
over insulation(mm)
 4~7
 MBL(kN) 1.5KN
 Weight(kg) 0.04KG
 Material

 Stainless Steel





Aplication:

For installation put an aerial drop wire cable in clamp’s shell. Place a part of tension clamp on top of optical fiber or telephone cable with raised embossing, against cable. Insert wedge in shell. Install the bail wire on drop wire hook and fixate in shell.



Strap Cable Tension Clamp Drop Wire Fixed Fiber Optic Cable Clamp 0
