Fusion Splice Protection Sleeves Heat Shrink Fiber Optic Accessories
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fusion Splice Protection Sleeves
Minimum Order Quantity: 1pcs
Price: Negotiable

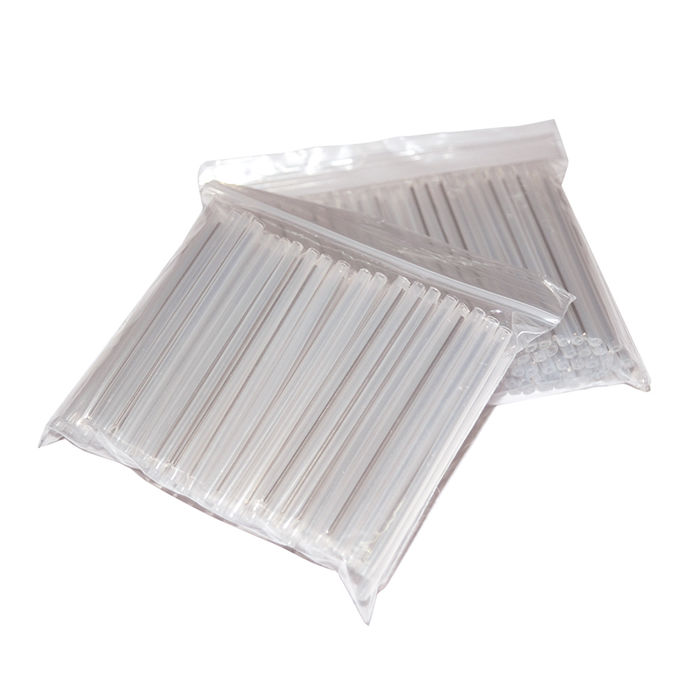

Packaging Details: Plastic bag
Supply Ability: 1000pcs/week
详情介绍
Fiber Count: 1 Type: Insulation Sleeving
Length: 40mm 45mm 60mm Stainless Steel: 0.5 / 0.8 / 1.0 Mm
Package: 100pcs/bag Shrinking Temperature Range: 110℃~130℃
Working Temperature: -45 ~ 100 °C
High Light: 60mm Heat Shrink Splice Protector, 45mm Fusion Splice Protection Sleeves Heat Shrink, 40mm Fusion Splice Protection Sleeves

Fusion Splice Protection Sleeves Hot Heat Shrinkable Fiber Optic Splice Protectors



Description:

Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing consist of cross linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.



Features:

1)Outer Shrink Tube
2)Stainless Steel Rod
3)Inner Tube
4)Protection Sleeves Length: 25mm, 30mm, 35mm,40mm, 45mm , 55mm , 60mm
5)Steel needle Diameter: 0.5mm, 0.8mm, 1.0mm,1.2mm,1.5mm (Standard Single Fiber)
6)Custom lengths available
7)Color-coded outer tubes available
8)No influence on the fiber's transmission
9)Splice point protection and intensity improvement
10)Easy operation and reduction of the risk of managing fiber
11) External tube clearly showing the status of connection
12)Airproof configuration keeping the splice point's good resistance of humidity and temperature
13)Operating temperature ranging from -45℃ to 100℃



Specification:

ModelSplice Protection SleevesFusion TubingSteel Rod
Outer Diameter(±0.1mm)LengthInner DiameterLengthOuter DiameterLength
FOST-60H3601.3601.555
FOST-45H3451.3451.540
FOST-40H3401.3401.535
FOST-60H2.6601.3601.255
FOST-45H2.6451.3451.240
FOST-40H2.6401.3401.235
FOST-60H2.4601.360155
FOST-45H2.4451.345140
FOST-40H2.4401.340135



Fusion Splice Protection Sleeves Heat Shrink Fiber Optic Accessories 0
