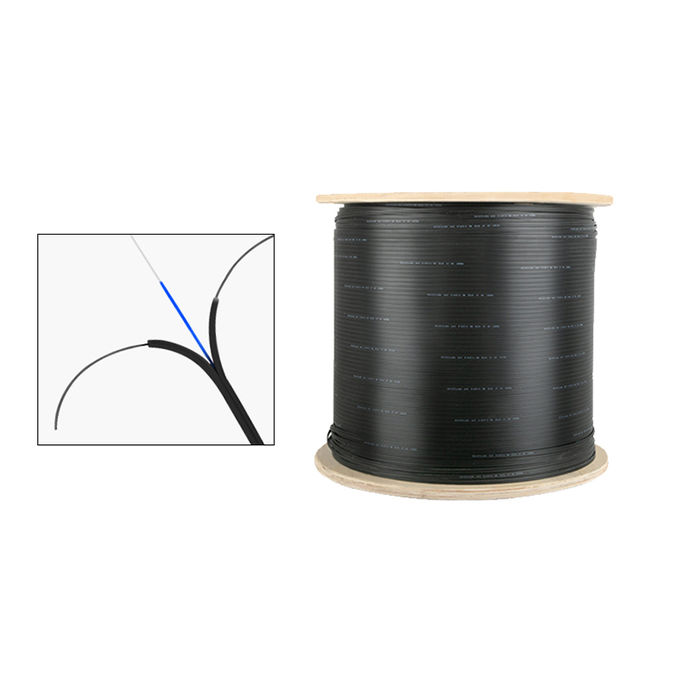

G657A LSZH Jacket 4 Core Outdoor FTTH Drop Cable With Messenger
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: GJYXCH 4 Core
Minimum Order Quantity: 10km
Price: Negotiable
Packaging Details: Wooden reel with box
Delivery Time: 8-10 working days
Supply Ability: 2000000M/Week
详情介绍
Fiber Count: 1, 2, 4 Core Fiber Type: G657A2
Strengthened Messenger Wire: Galvanized Steel Wire Outer Sheath Material: LSZH - Low Smoke Zero Halogen
Packaging: Wooden Reel With Box Application: FTTH
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C
High Light: G657A Outdoor FTTH Drop Cable, 4 Core Outdoor FTTH Drop Cable, G657A 4 Core Drop Cable

Outdoor Drop Cable 4 Core G657A LSZH Jacket With Messenger



Description:

FTTH Drop Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH sheath.



Characteristics:

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

2. Simple structure, light weight and high practicability.

3. Low smoke, zero halogen and flame retardant sheath.

4. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
5. Two parallel strength members ensure good performance of crush resistance to protect the fiber.
6. Simple structure, light weight and high practicability.
7. Novel flute design, easily strip and splice, simplify the installation and maintenance.



Application:

1. Adopted to outdoor distribution;

2. Suitable for aerial, pipeline laying method;

3. As FTTH cable,for outdoor horizontal and vertical cabling.



Technical Data:

 Item Contents Value
 Central strength member Material FRP / KFRP / steel wire
 Central strength member Diameter 0.5mm*2+1.0mm
 Outer sheath Material LSZH
 Outer sheath Thickness 0.5mm~0.8mm



Cable Mechanical characteristic:

  Cable type  Diameter(mm)  Weight
 (kg/km)
  Tensile strength
  Long/short term
         (N)
  Bending radius
  Dynamic/static
         (mm)
 Storage temperature
          ( ℃ )
 GJYXCH-1~2         2.0*5.0     22         300/600        20D/10D            -20~+70
 GJYXCH-2~4         2.0*5.0     19         300/600        20D/10D            -20~+70



G657A LSZH Jacket 4 Core Outdoor FTTH Drop Cable With Messenger 0
