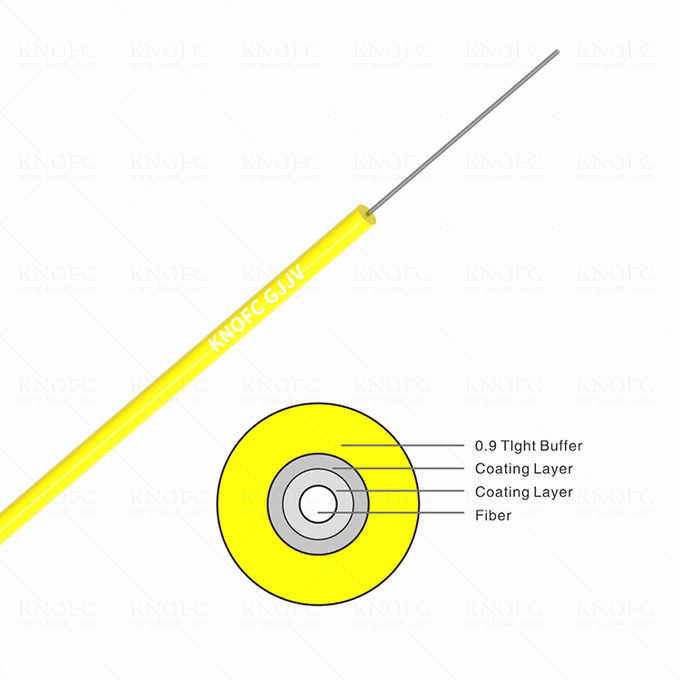

GJJV Tight Buffer 900um 0.9mm SM Fiber Optic Cable
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: GJJV
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: wooden drum
Delivery Time: 8-10 working days
Supply Ability: 600000M/Week
详情介绍
Fiber Type: SM / MM Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 1 Core Cable OD: 0.9mm / 0.6mm
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C
High Light: GJJV 0.9mm SM Fiber Optic Cable, 900um SM Fiber Optic Cable, GJJV 900um Fiber Optic Cable

GJJV Tighr Buffer Fiber 900um 0.9mm SM Fiber Optic Cable



Description:

Tight buffer cable are manufactured by extruding one layer tight buffer on the coated fiber. Using the excellent quality fiber, tight buffer material and the unique equipment , precision mold and controlled by the precision diameter checking technology, the products have the good and reliable performance.



Features:

-900μm semi tight buffer fiber,aramid Yarn,flame-retardant jacket.
-Suited to SM fiber and MM fiber (50μm and 62.5μm).
-It is ideal choice of active apparatus used pigtail.
-Excellent temperature performance.
-Excellent stripping performance.



Application:
1.Optical fiber jumper or pigtail.
2.Indoor riser level and plenum level cable distribution.
3.Interconnect between instruments, communication equipment.



Optical Fiber Characteristic:

Fiber TypeG.652D,125.0+-1.0μm
Mode Field Diameter9.2+-0.2μm at 1310 nm
Cladding Diameter125+-1μm
Cladding Non-Circularity<=1%
Coating Diameter245+-10μm
Attenuation Coefficient<=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion<=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength1300-1322nm
PMD Coefficient<=0.2ps/√km



Technical Parameters:

Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature   ( ℃ )
GJJV-10.616/3300/100020D/10D-40~+70
GJJV-10.91.5
