GJSJV Simplex SM G652D G657A Armored Indoor Fiber Cable
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: GJSJV 1 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 600000M/Week
详情介绍
Fiber Type: SM / MM Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 1 Core Cable OD: 2.0 Mm / 3.0 Mm
Protect Layer: Kevlar Yarn Jacket Material: PVC / LSZH
Armored: Metal Tube Life Expectancy: More Than 30 Years
Operating Temperature: -40°C To+70°C
High Light: GJSJV Simplex Indoor Fiber Cable, SM G652D Indoor Fiber Cable, G657A Armoured OFC Cable

GJSJV Indoor Armored Fiber Cable Simplex Fiber SM G652D G657A



Description:

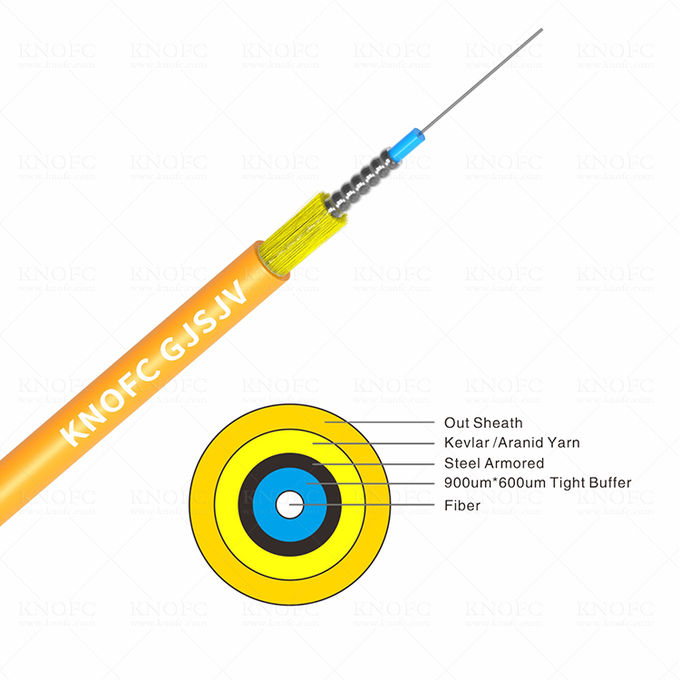

GJSJV Simplex Armored Round Cable use 600um&900um tight buffer fiber, steel tube protect, reinforcing steel-wire braiding (kevlar /aramid yarn), flame-retardant jacket. High indentation strength, high tensile strength, gopher protected, small diameter, flexibility and easy bend.



Features:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meet the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.



Application:

1. Used in pigtails and patch cords;
2. Used in optical connections in optical communication equipment rooms and optical distribution frames;
3. Used in optical connections in optical apparatus and equipments.



Technical Parameters:

Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature   ( ℃ )
GJSJV-12.01580/150300/100020D/10D-40~+70
GJSJV-13.019



Mechanical requirements and methods of fiber cable:

Tensile strength10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33%
Crush2200N/100mm, conform to IEC 794-1-E3
ImpactConform to IEC 794-1-E4
Repeated bendingConform to IEC 794-1-E6
TorsionConform to IEC 794-1-E7
FlexingConform to IEC 794-1-E8
KinkConform to IEC 794-1-E10
Cable bendConform to IEC 794-1-E11
VibrationConform to IEC 794-1
Water penetrationConform to IEC 794-1-F5B
AbrasionConform to IEC 794-1-E2
Temperature cycling testConform to IEC 794-1-F1
Dielectric strength of outer jacketConform to ITU-T Rec.K25
