Fiber Optic Heat Shrink Sleeve 40mm 45mm 60mm Fiber Optic Accessories
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fusion Splice Protection Sleeves
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag
Supply Ability: 1000pcs/week
详情介绍
Fiber Count: 1 Type: Insulation Sleeving
Length: 40mm 45mm 60mm Stainless Steel: 0.5 / 0.8 / 1.0 Mm

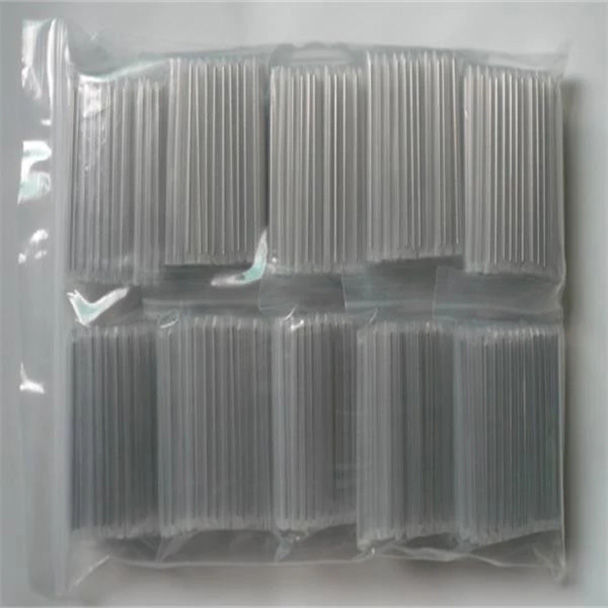

Package: 100pcs/bag Shrinking Temperature Range: 110℃~130℃
Working Temperature: -45 ~ 100 °C
High Light: 40mm Fiber Optic Heat Shrink Sleeve, 45mm Fiber Optic Heat Shrink Sleeve, Protection Sleeve 60mm

Fiber Optic Heat Shrinkable Splice Sleeve tube 40mm 45mm 60mm



Description:

Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber.



Features:

1. Consist of a Rod of rainforcing the splice, hot fusion tubing and cross linked Polyolefin. To rebuild the coating of fiber to provide mechnical strangth at the fusion joint area and keep the optical transmission properties.
2. Moisture resistant for environmental protecion clear sleeve make it easy to detect splice before shrinkage.
3. Easily use and avoid any damages to the oprical fiber during installation.
4. Sealing structure provides good performanc e to the splicing in the environment with temperature and humidity.
5. Bellcore GR-1380 Compliant.



Specification:

ModelSplice Protection SleevesFusion TubingSteel Rod
Outer Diameter(±0.1mm)LengthInner DiameterLengthOuter DiameterLength
FOST-60H3601.3601.555
FOST-45H3451.3451.540
FOST-40H3401.3401.535
FOST-60H2.6601.3601.255
FOST-45H2.6451.3451.240
FOST-40H2.6401.3401.235
FOST-60H2.4601.360155
FOST-45H2.4451.345140
FOST-40H2.4401.340135





Fiber Optic Heat Shrink Sleeve 40mm 45mm 60mm Fiber Optic Accessories 0
