Outdoor 24 Core Aerial Optical Fiber Cable GYFTY G652D Loose Tube Cable
Place of Origin: China
Brand Name: KNOFC
Certification: ISO9001/CE
Model Number: GYFTY 24 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 200000M/Week
详情介绍
Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning / KNOFC
Fiber Count: 2-288 Core Strength Member: FRP
Protective Layer: Water Blocking Tape Outer Sheath Material: HDPE
Application: Aerial / Duct Life Expectancy: More Than 30 Years
Operating Temperature: -40°C To+70°C Certification: ISO9001/CE


Outdoor 24 Core Aerial Optical Fiber Cable GYFTY G652D Loose Tube Cable



Description:

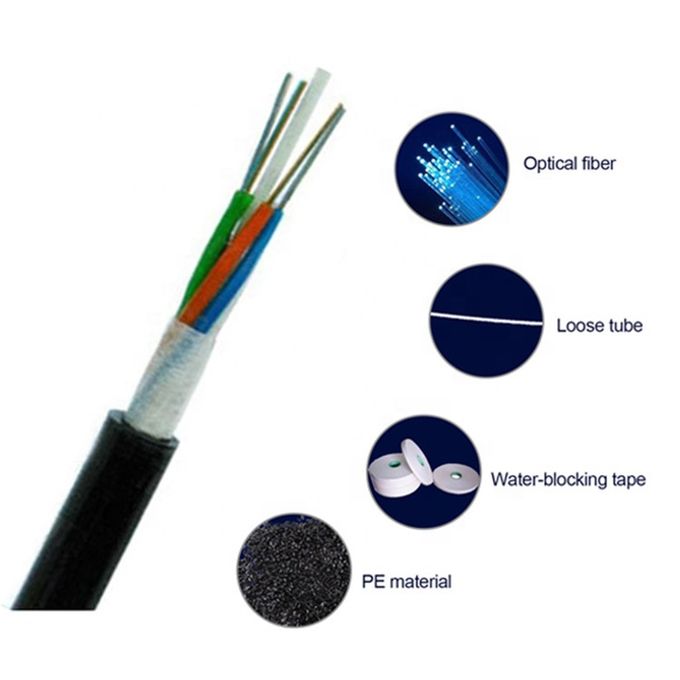

The fibers,250um,, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is wrapped with the water blocking tape to protect it from water ingress,,the cable is completed with a PE sheath.



Characteristics:

1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility.
5. The following measures are taken to ensure the cable watertight:
          a.Single Fiber Reinforced Plastic as the central strength member
          b. Loose tube filling compound
          c. 100% cable core filling



Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.



Cable Mechanical characteristic:

Cable typeDiameter  (mm)Weight  (kg/km)Tensile strength
Long/short term  (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static  (mm)
Storage temperature   ( ℃ )
GYFTY-2~609.085600/1500300/100020D/10D-20~+70
GYFTY-62~721095
GYFTY-74~9611110
GYFTY-98~12013125
GYFTY-122~14415145



Outdoor 24 Core Aerial Optical Fiber Cable GYFTY G652D Loose Tube Cable 0
