Outdoor GYTY53 96 Core SM Direct Buried Fiber Optic Cable
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: ISO9001/CE
Model Number: GYTY53 96 Core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 8-10 working days
Supply Ability: 100000M/Week
详情介绍

Fiber Type: G652D Or As Your Request Fiber Brand: YOFC / Fiberhome / Corning
Fiber Count: 2-288 Core Central Strength Member: Steel Wire
Protective Layer: Corrugated Steel Tape Outer Sheath Material: HDPE
Application: Duct / Underground/Aerial Life Expectancy: More Than 30 Years
Operating Temperature: -40°C To+70°C Certification: ISO9001/CE
High Light: 96 Core SM Direct Buried Fiber Optic Cable, GYTY53 Direct Buried Fiber Optic Cable, GYTY53 96 Core Fiber Optic Cable

GYTY53 96 Core SM Direct Buried Style Outdoor Fiber Optic Cable



Description:

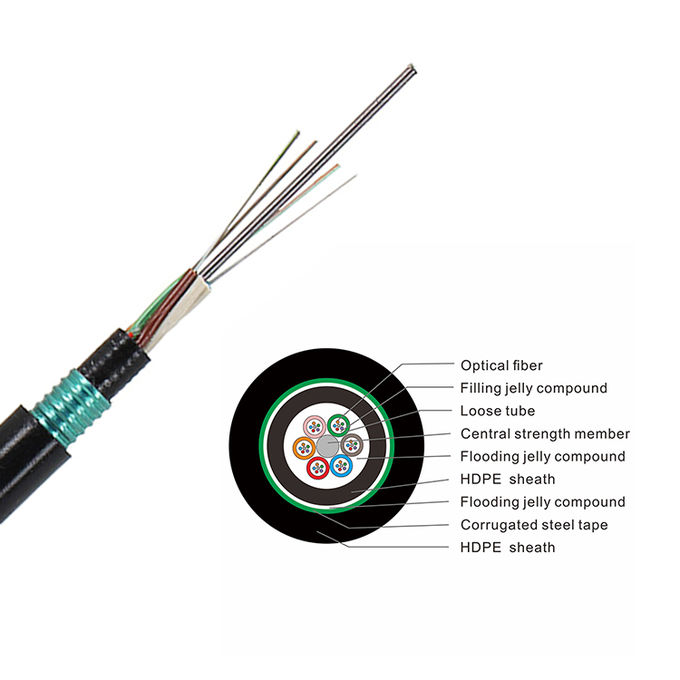

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.



Characteristics:

◆ Good mechanical and temperature performance.
◆ High strength loose tube that is hydrolysis resistant.
◆ Special tube filling compound ensure a critical protection of fiber.
◆ Crush resistance and flexibility.
◆ The following measures are taken to ensure the cable watertight:
          ➢ Steel wire used as the central strength member
          ➢ Loose tube filling compound
          ➢ 100% cable core filling
          ➢ PSP enhancing moisture-proof
          ➢ Water-blocking material



Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, duct and direct buried.
3. Long distance and local area network communication.



Cable Mechanical Characteristic:

Cable typeDiameter (mm)Weight (kg/km)Tensile strength
Long/short term (N)
Crush Resistance Long/Short Term(N/100mm)Bending radius
Dynamic/static (mm)
Storage temperature    ( ℃ )
GYTY53-2~6010.0140600/1500300/100020D/10D-20~+70
GYTY53-62~7212.0170
GYTY53-74~9614.0210
GYTY53-98~12015.0230
GYTY53-122~14416.0245



Outdoor GYTY53 96 Core SM Direct Buried Fiber Optic Cable 0
