Aerial 120M 24 Core All Dielectric Self Supporting Fiber Optic Cable
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: ADSS 24 core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden Drum
Supply Ability: 500000M/Week
详情介绍
Product Name: ADSS Fiber Cable 24 Core Fiber Type: Singlemode / Multimode
Fiber Count: 2-288cores Jacket Material: HDPE Or AT
Supporting Strength: Aramid Yarn/Kevlar Yarn Central Strength Member: FRP
Span: 50-1000M Application: Self-Support Aerial
High Light: All Dielectric Self Supporting Fiber Optic Cable, 120M Self Supporting Fiber Optic Cable, 120M 24 Core Fiber Optic Cable

All Dielectric Self-supporting Aerial Cable Span 120M 24 Core ADSS Cable



Description:

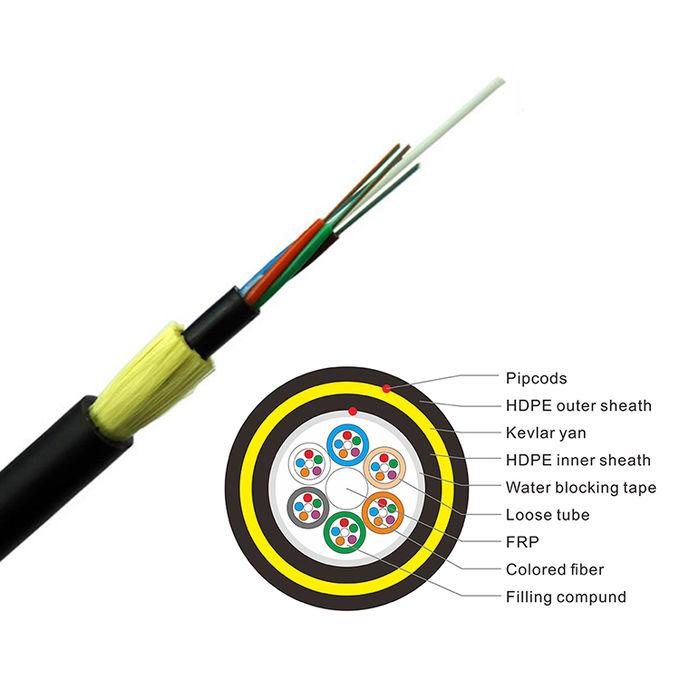

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water- blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (HDPE) sheath.



Characteristics:

  • Can be installed without shutting off the power
  • Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
  • Large span lengths and the largest span is over 1000m
  • Good performance of tensile strength and temperature

Optical Fiber Characteristic:

G.652.DG.65550/125μm62.5/125μm
Attenuation@850nm≤3.0 dB/km≤3.0 dB/km
@1300nm≤1.0 dB/km≤1.0 dB/km
@1310nm≤0.36 dB/km≤0.40 dB/km
@1550nm≤0.22 dB/km≤0.23dB/km
Bandwidth@850nm≥500 MHz·km≥200 MHz·km
@1300nm≥1000 MHz·km≥600 MHz·km
Numerical Aperture0.200±0.015NA0.275±0.015NA
Cable Cut-off Wavelengthλcc≤1260nm≤1480nm



Application:

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.



Cable Mechanical Characteristic:

  Cable type    Diameter(mm)  Weight
  (kg/km)
  Tensile strength
  Long/short term
          (N)
  Bending radius
  Dynamic/static
          (mm)
  Storage temperature
            ( ℃ )
 ADSS-2~60         10.0      110      1000/3000      20D/10D        -20~+70
 ADSS-62~72         12.0      120      1000/3000      20D/10D        -20~+70
 ADSS-74~96         14.0      130      1000/3000      20D/10D        -20~+70
 ADSS-98~144         16.0      185      1000/3000      20D/10D        -20~+70
 ADSS-146~288         20.0      298      1000/3000      20D/10D        -20~+70
