Place of Origin: China Brand Name: KNOFC Certification: ISO9001/CE Model Number: GYFJH53 2 Core Minimum Order Quantity: 1km Price: Negotiable Packaging Details: Wooden drum Delivery Time: 8-10 working days Supply Ability: 200000M/Week
|Fiber Type:||G652D Or As Your Request||Fiber Brand:||YOFC / Fiberhome / Corning|
|Fiber Count:||2-12 Core||Protect Layer:||Kevlar Yarn|
|Outer Sheath Material:||PE, PVC, LSZH, TPU||Application:||FTTX|
|Life Expectancy:||More Than 30 Years||Operating Temperature:||-40°C To+70°C|
|Armored Material:||Corrugation Steel Tape|
|High Light:||GYFJH53 2 Core Optic Fiber Cable, Armored GYFJH53 Optic Fiber Cable, GYFJH53 2 Core OFC Cable|

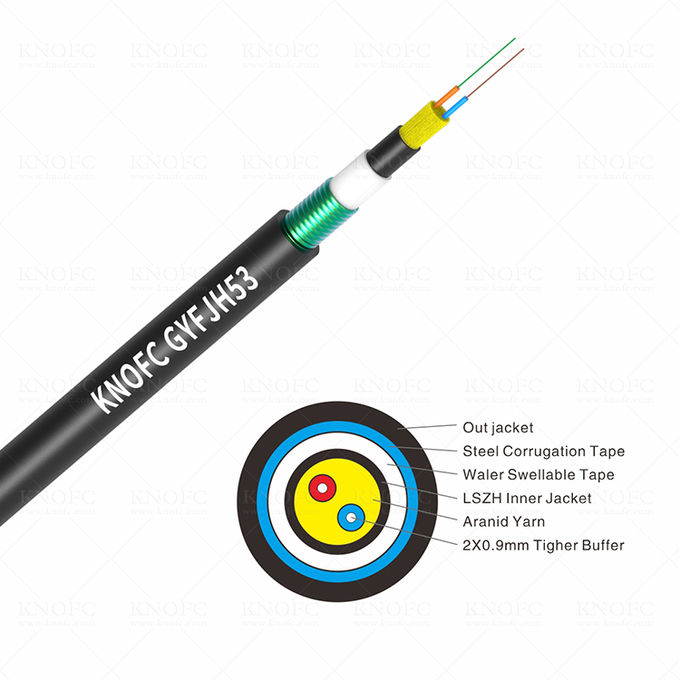

GYFJH53 Outdoor Cable used as optical transmission medium with 900um subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element, and the cable is completed with outside jacket,(PVC,LSZH,TPU,PE or other material according to customer's requirements).
1. Good mechanical and temperature characteristics.
2. Good lateral compression and flexibility.
3. Small diameter, light weight, easy to connect, and support large capacity data transmission.
4. Outer jacket material has the advantages of water proof, flame retardant, environmental protection.
5. Mini armored layer used to decrease the outer diameter and cable weight, also convenient for laying and splice.
1. Remote base station communication such as RRU or BBU
2. Smart substation and CATV Outdoor application.
3. Emergency access to optical fiber communication.
4. Used in FTTX, from residence to datat center and cabling level and vertical, also usedin FTTH cable.
|Cable type||Diameter (mm)||Weight (kg/km)||Tensile strength|
Long/short term (N)
|Crush Resistance Long/Short Term(N/100mm)||Bending radius|
|Storage temperature ( ℃ )|
1. Strandard wooden drum with protection.
2. Strandard reel length: 2km/reel 3km/reel, other length is also available.
