SC APC Fast Connector FTTH Field Assembly Optical Connector
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fast Connector SC/APC
Minimum Order Quantity: 1pcs
Price: Negotiable

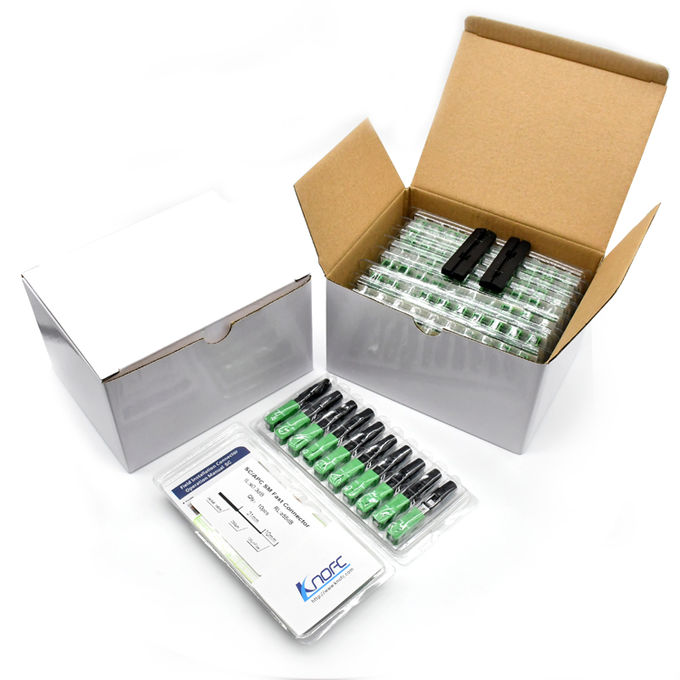

Packaging Details: Plastic boxes
Supply Ability: 50000pcs/week
详情介绍
Fiber Type: Singlemode Fiber Cable Type: 3x2.0mm Ftth Drop Cable
Insertion Loss: ≤ 0.25dB Return Loss: ≥50dB
Application: FTTH,LAN,PON&Optical CATV Operating Temperature: -30°C To+60°C
High Light: FTTH Field Assembly Optical Connector, SC APC Field Assembly Optical Connector, FTTH SC APC Fast Connector

Fiber Optic SC APC Fast Connector FTTH Field Quick Assembly



Description:

The fast connector designed for FTTH is a new generation of fiber connector used in assembly, fiber connector is a revolutional field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.We provide field installable high reliability fast connectors, our using our top quality ceramic ferrules with reliable and supperior optical performance,their cable tensiletes complied with telcordia GR-326-CORE.Using corning fiber and high temperature cycle test 24hours( -40-85℃) quality is stable working in poor condition.



Features:

1.Reliable and superior optical performance.
2.Using corning fiber.
3.Imported Brand matching gel(FIS).
4.Print manufacturer name on fast connector body.
5.Easy for assembling with mechanical splice and no polishing.
6.Lock and open the structure to make sure optical fiber, flexible, easy to use.
7.Operating Wavelength: 1310nm, 1490nm, 1510nm.
8.High temperature cycle test 24hours( -40-85℃) is stable working in poor condition.
9.Analysis 3D ferrule (3D geometry test)



Optical Characteristic:

 Items Specification
 Application Drop cable.Indoor cable
 Fiber mode Single mode or Multi mode
 Fiber type G.652D, G.657A1
 Fiber cable 3.0*2.0mmrubber-insulated optical cable ∅3.0/∅2.0 /∅0.9 insulated optical cable
 Fiber diameter 0.125mm
 Force holds 2 x 3mm cable type at the beginning of the fast connector ≥ 40 N, loss ≤ 0.4 dB (sample cable length: 22 - 28 cm, test time: 2 minutes)
 Fiber lock Lock holds fiber reliability, bears hang force ≥ 3.0 N, attenuation changes ≤ 0.2 dB.
 Working wavelength 1310 nm, 1490 nm, 1550 nm
 Operation time About 50S (no fiber cut)
 Insertion loss ≤0.3dB
 Insertion Loss Typical value 0.3dB
 Return Loss UPC≥45,APC≥55
 Fastening strength of naked fiber ≥3N
 Tensile strength ≥40N
 Reusable ≥10 times
 Operating Temperature -40~+85℃
 On-line tensile strength(20N) ΔIL≤0.3dB
 Mechanical durability (500 times) ΔIL≤0.3dB
 Drop-off test(drop-off height4m,once per  direction,totally 3 times) ΔIL≤0.3dB

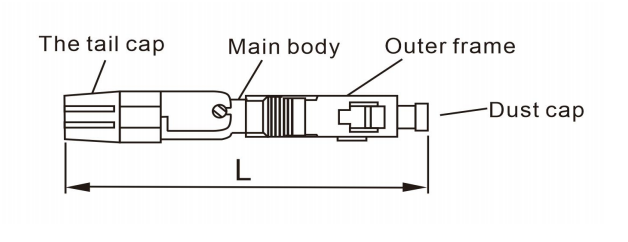

Measured the Structure:



SC APC Fast Connector FTTH Field Assembly Optical Connector 0

SC APC Fast Connector FTTH Field Assembly Optical Connector 1
