Single Mode Outside Aerial 48 Hilos G652D ADSS Fiber Cable
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: ADSS 24core
Minimum Order Quantity: 1km
Price: Negotiable
Packaging Details: Wooden Drum
Supply Ability: 500000M/Week
详情介绍
Product Name: ADSS Fiber Cable 96core Fiber Type: Singlemode/Multimode
Fiber Count: 2-288cores Jacket Material: HDPE Or AT
Supporting Strength: Aramid Yarn/Kevlar Yarn Central Strength Member: FRP
Span: 50-1000M Application: Self-Support Aerial
High Light: 48 Hilos ADSS Fiber Cable, G652D ADSS Fiber Cable, 48 Hilos Outside Aerial Cable

ADSS Fiber Cable 96Core G652D Span 100M Double HDPE Sheath Aramid Yarn



Description:

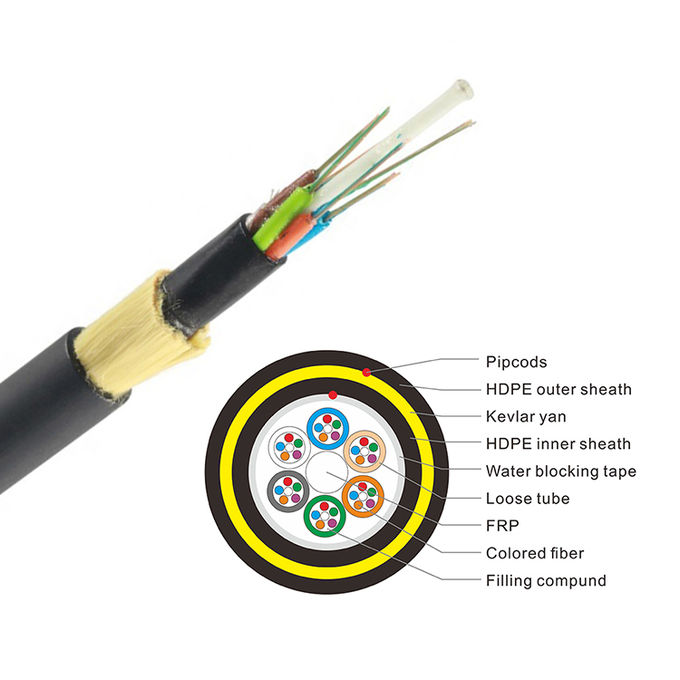

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water- blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (HDPE) or AT sheath.



Characteristics:

1. Can be installed without shutting off the power.

2. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.

3. Large span lengths and the largest span is over 1000m.

4. Good performance of tensile strength and temperature.



Application:

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

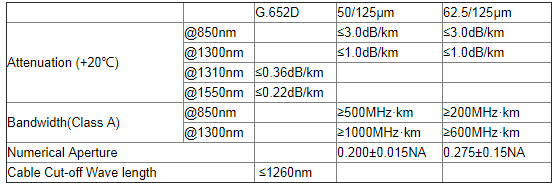

Optical Fiber Characteristic:

Single Mode Outside Aerial 48 Hilos G652D ADSS Fiber Cable 0



Cable Mechanical Characteristic:

  Cable type    Diameter(mm)  Weight
  (kg/km)
  Tensile strength
  Long/short term
          (N)
  Bending radius
  Dynamic/static
          (mm)
  Storage temperature
            ( ℃ )
 ADSS-2~60         10.0      110      1000/3000      20D/10D        -20~+70
 ADSS-62~72         12.0      120      1000/3000      20D/10D        -20~+70
 ADSS-74~96         14.0      130      1000/3000      20D/10D        -20~+70
 ADSS-98~144         16.0      185      1000/3000      20D/10D        -20~+70
 ADSS-146~288         20.0      298      1000/3000      20D/10D        -20~+70



Single Mode Outside Aerial 48 Hilos G652D ADSS Fiber Cable 1
