Singlemode FTTH ESC250D SC APC Fiber Optic Fast Connector
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: ESC250D Fast Connector
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic boxes
Supply Ability: 50000pcs/week
详情介绍
Fiber Type: Singlemode Fiber Cable Type: 3x2.0mm Ftth Drop Cable
Insertion Loss: ≤ 0.25dB Return Loss: ≥50dB
Application: FTTH,LAN,PON&Optical CATV Operating Temperature: -30°C To+60°C
High Light: FTTH SC APC Fiber Optic Fast Connector, ESC250D Fiber Optic Fast Connector, ESC250D FTTH Fast Connector

ESC250D SC APC Fast Connector Fiber Quick Connector



Description:

The fast connector designed for FTTH is a new generation of fiber connector used in assembly, fiber connector is a revolutional field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.We provide field installable high reliability fast connectors, our using our top quality ceramic ferrules with reliable and supperior optical performance,their cable tensiletes complied with telcordia GR-326-CORE.Using corning fiber and high temperature cycle test 24hours( -40-85℃) quality is stable working in poor condition.



Features:

1. Comply with TIA/EIA Telcoria GR-326-Core and IEC 61754
2. Quick and easy fiber termination
3. RoHS compliant
4. Reusable termination capability up to 10 times
5. Easy to deploy fiber solution
6. High success rate of connections
7. Low Insertion & Back Reflection
8. No special tools required
9. OEM Printing, packing and label is okay
10. Cutting 250um fiber 20.85mm, 125um fiber 7.7mm



Application:

1) CATV & FTTH
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Data processing networks
7) Video and military active device termination
8) Optical Distribution Frame
9) Optical Network Equipments

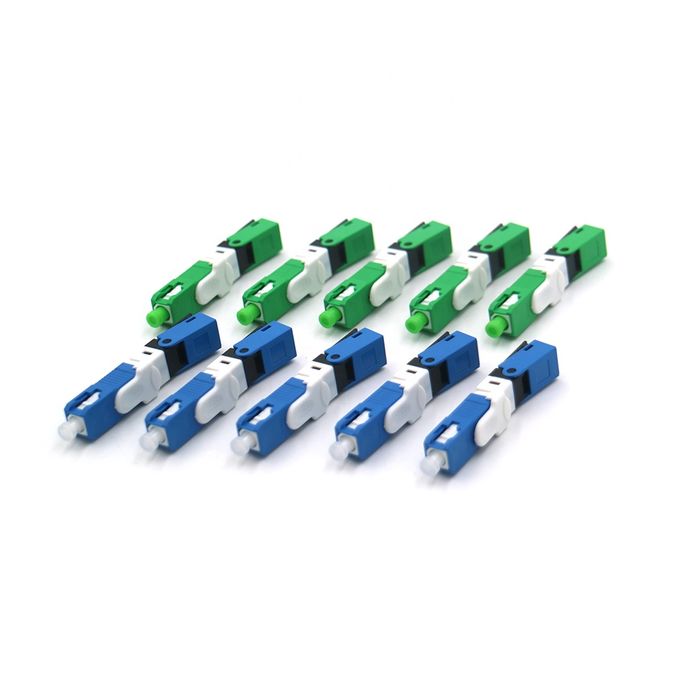

Singlemode FTTH ESC250D SC APC Fiber Optic Fast Connector 0
