Waterproof FTTH 16 Port Fiber Optic Distribution Box
Place of Origin: China
Brand Name: KNOFC or OEM
Certification: CE/ISO9001
Model Number: Fiber Optic Distribution Box 16 C
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: box
Supply Ability: 1000pcs/week
详情介绍
Fiber Count: 16 Core Material: ABS New Material
IP Grade: IP65 PLC Splitter: 1x8 1x16
Installation Way: Pole Mount Or Wall Mount Ports: 2 Cable Ports+16 Drop Cable Ports
Size: 280x220x82mm Application: FTTX Network
High Light: 16 Port Fiber Optic Distribution Box, Waterproof FTTH Fiber Optic Distribution Box, 16 Port Cable Termination Box

Cajas Nap de Distribucion Fibra Optica 16 Port FTTH Fibre Distribution Box



Description:

Fiber optical terminal box, termination box is applicable PLC Splitter/ coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH. This fiber optic terminal box applies to the communications room and various network room wall installation or desktop installation. FTTH insert optical fiber terminal splitter box, arc, horizontal type.



Specification:

GJS-303 Fiber Optical Splice Box
MaterialPP+Glass Fiber
Size380*245*130mm
Cable Ports1pc un-cut cable port, 2pcs output cable ports, 16pcs drop cable ports
Max Capacity96FO
Splice Tray2 pcs 100%PC Material
Weight4.5~5KG
AccessoriesProtecting Sleeves, labelling paper, insulation tape, abrasive paper, wall-mount kits, sealing tape, nylon tie, earthing wire, plastic wrench
Sealing WaySilicon Rubbersealing Ring
Installation WayAerial, wall or pole-Mounting



Features:

1. ABS material used ensures the body strong and light.
2. Water-proof design for outdoor uses.
3. Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5. Ready for splitters: designed space for adding splitters.
6. Space saving! Double-layer design for easier installation and maintenances.
7. Lower layer for splitters and over length fiber storage.
8. Upper layer for splicing, cross-connecting and fiber distribution.
9. Cable fixing units provided for fixing the outdoor optical cable.
10. Protection Level: IP65.
11. Accommodates both cable glands as well as tie-wraps.
12. Lock provided for extra security.

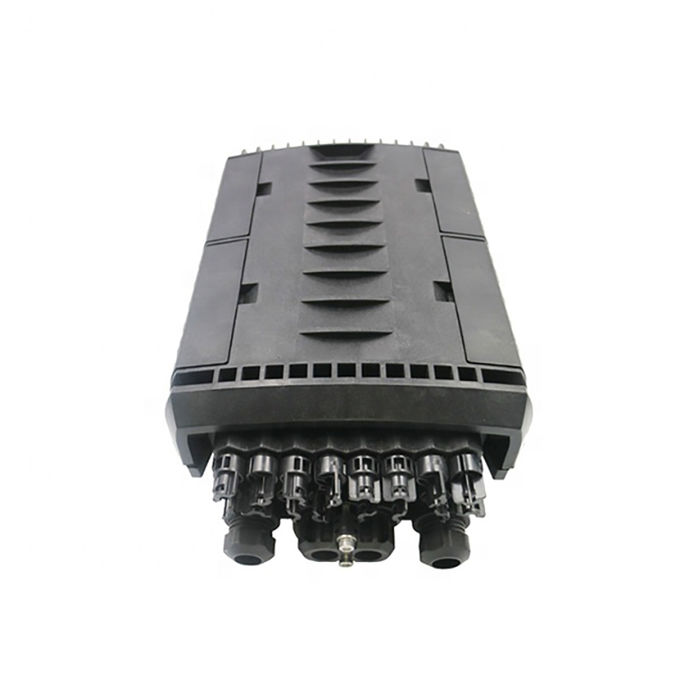

Waterproof FTTH 16 Port Fiber Optic Distribution Box 0

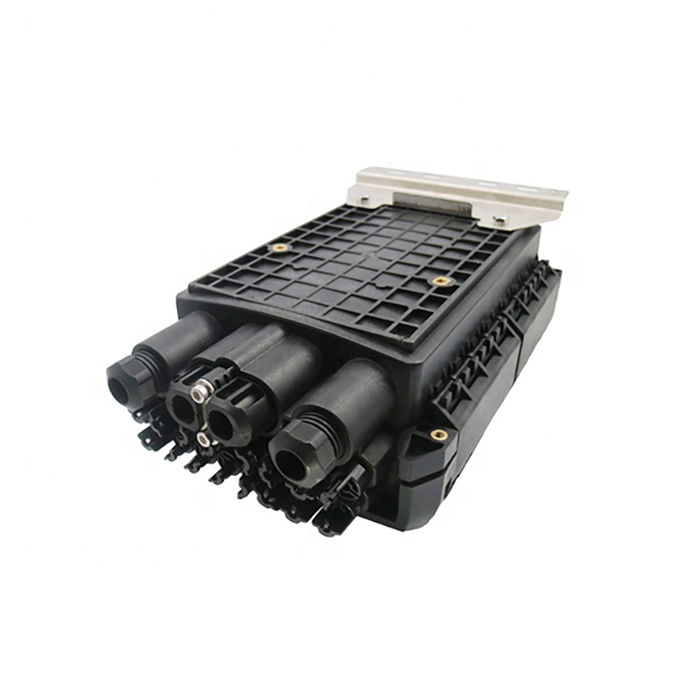

Waterproof FTTH 16 Port Fiber Optic Distribution Box 1
