FTTH Drop Cable
Current location:Home   >>  Products   >>  Optic Fiber Cable   >>  FTTH Drop Cable
1 Core G657A Steel Wire LSZH Jacket Outdoor Drop Cable
  • 1 Core G657A Steel Wire LSZH Jacket Outdoor Drop Cable
  • 1 Core G657A Steel Wire LSZH Jacket Outdoor Drop Cable
Place of Origin: China
Brand Name: KNOFC
Certification: CE/ISO9001
Model Number: GJYXCH 1 Core
Minimum Order Quantity: 10km
Price: Negotiable
Packaging Details: Wooden reel
Delivery Time: 8-10 working days
Supply Ability: 2000000M/Week
Fiber Count: 1, 2, 4 Core Fiber Type: G657A2
Strengthened Messenger Wire: Galvanized Steel Wire Outer Sheath Material: LSZH - Low Smoke Zero Halogen
Packaging: Wooden Reel With Box Application: FTTH
Life Expectancy: More Than 30 Years Operating Temperature: -40°C To+70°C
High Light: G657A Outdoor Drop Cable, LSZH Jacket Outdoor Drop Cable, G657A 0.5 Mm Single Core Cable

FTTH Drop Cable Outdoor 1Core G657A Fiber steel wire LSZH Jacket

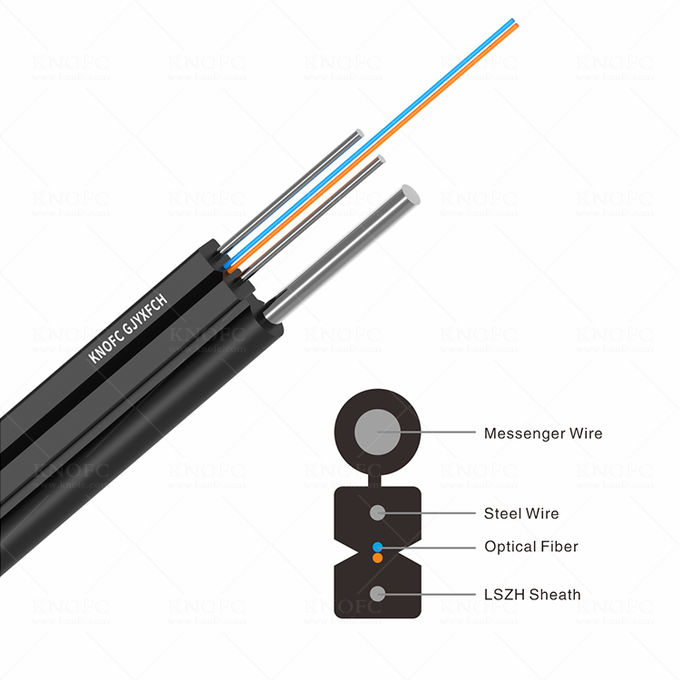

FTTH Drop Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH sheath.



1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

2. Simple structure, light weight and high practicability;

3. Low smoke, zero halogen and flame retardant sheath.



1. Adopted to outdoor distribution;

2. Suitable for aerial, pipeline laying method;

3. As FTTH cable,for outdoor horizontal and vertical cabling.


Technical Data:

 Item  Contents  Value
 Central strength member  Material  FRP / KFRP / steel wire
 Central strength member  Diameter  0.5mm*2+1.0mm
 Outer sheath  Material  LSZH
 Outer sheath  Thickness  0.5mm~0.8mm



Optical Fiber Characteristic:

G.652.D G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm


Cable Mechanical characteristic:

  Cable type   Diameter(mm)   Weight
  Tensile strength
  Long/short term
  Bending radius
 Storage temperature
          ( ℃ )
 GJYXCH-1~2          2.0*5.0      22          300/600         20D/10D             -20~+70
 GJYXCH-2~4          2.0*5.0      19          300/600         20D/10D             -20~+70


1 Core G657A Steel Wire LSZH Jacket Outdoor Drop Cable 0
